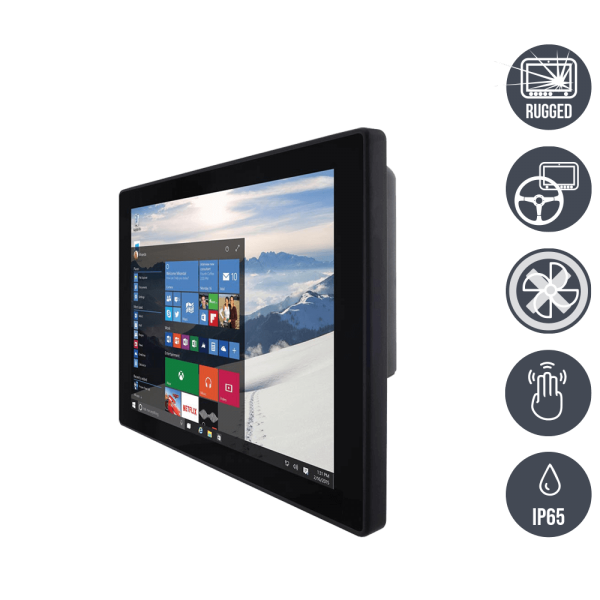

R12IB3S-GSM2
Multitouch-Screen, Projected-Capacitive (PCAP)
Rugged Panel PC for stationary and vehicle-mounted use Industrial Panel PC in sturdy steel sheet housing Protection class IP65 all around incl. Interfaces Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
01-Rugged-Panel-Industrie-PC-R12IB3S-GSM2.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23120392
prezzo lordo: € 1.130,50
€ 950,00 *
prezzo lordo: € 1.130,50
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23120392 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | GS-Serie |
| Manufacturer item number: | R12IB3S-GSM2(HB) |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 29,62 |
| dimensions height: | 22,67 |
| dimensions depth: | 4,55 |
| weight: | 2,6 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP65 |
| protection device: | IP65 |
| colour: | RAL 9004 / signal black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 12,1 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 500 cd/m² |
| contrast: | 700:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC (M12 type) |
| external power supply: | 12 V/DC, 100 - 240 V/AC, IP65 |
| input: | 24 Watt |
| USB: | 1 x USB 2.0 (M12 type) |
| serial: | 1 x RS-232 (M12 type) |
| Audio: | 1 x 1 Watt Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (M12 type) |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron Bay Trail-M |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,83 GHz |
| CPU cores: | 4 |
| CPU socket: | CPU Onboard |
| RAM size (MB): | 2048 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics 630 |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 1.2 |
| connections SATA: | 1 |
| CPU class: | Atom / Celeron |
| SSD design: | mSATA |
| SSD capacity (GB): | 120 |
| RAID-System: | Nein / no |
| CD/DVD-Writer : | Nein / no |
| Ethernet Controller : | Intel I210-AT |
| WLAN : | Nein / no |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
