R19L300-MRA2ID3S
Hardware marino
19" (1280 x 1024) Marine Panel PC Intel Atom® N2600 dual-core processor Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Protection class IP66 Front side protected, IP 54 Back side protected Dimming knob control backlight brightness from nearly 0% to 100% Resistive Touchscreen / Anti-Reflection Protection Glass (Optional) 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount

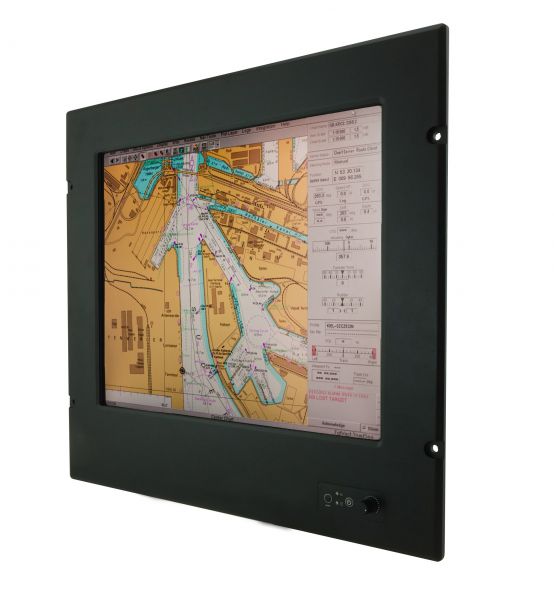

01-Marine-Panel-PC R19L300-MRA2ID3S.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Panel-PC R19L300-MRA2ID3S.jpg / TL Produkt-Welten / Marine Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23191858
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23191858 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | R19L300-MRA2ID3S |
| mechanics: | Panel Mount |
| dimensions width: | 38,45 |
| dimensions height: | 44,4 |
| dimensions depth: | 7,5 |
| weight: | 9,5 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP66 |
| colour: | schwarz / black |
| controls: | 3 Keys: Power On/Of, Reset, Brightness |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 350 cd/m² |
| contrast: | 1000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 24 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| USB: | 2 x USB 2.0 |
| serial: | 1 x RS232/422/485, 4 x RS232 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| chipset: | Intel NM10 |
| CPU Typ: | Atom |
| CPU Model: | N2600 |
| CPU 64bit: | Ja |
| CPU speed: | 1,6GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA559 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Betriebssystem: | Optional |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
