G101TG
Automazione Industriale, Controllore di robotica

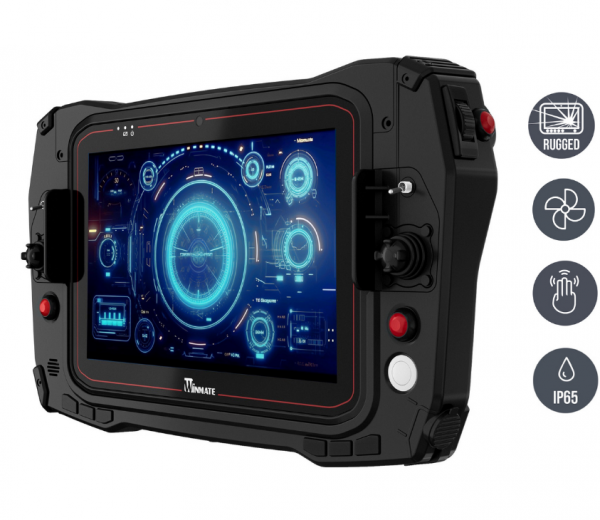

10.1" Intel Tiger Lake Rugged Robotic Controller Intel Core i5-1135G7 Tiger Lake Processor All-weather, dust and waterproof IP65 design Shock, vibration and drop resistance (MIL-STD-810H) Low-latency video SW decoder for high-resolution real-time video playback Supports WIFI, BT and optional 4G/5G Embedded TPM IC and optional OPAL SSD
04-Rugged-Robotic-Controller-G101TG-v1.png / TL Produkt-Welten / Rugged Robotic Controller / Robotics Controller
02-Rugged-Robotic-Controller-G101TG.jpg / TL Produkt-Welten / Rugged Robotic Controller / Robotics Controller
05-Rugged-Robotic-Controller-G101TG.jpg / TL Produkt-Welten / Rugged Robotic Controller / Robotics Controller
Numero Ordine:
25100084
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 25100084 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Robotic Controller |
| Manufacturer item number: | G101TG |
| mechanics: | Rugged Robotic Controller |
| dimensions width: | 36,93 |
| dimensions height: | 22,15 |
| dimensions depth: | 6,73 |
| weight: | 2,4 |
| protection device: | IP65 |
| colour: | Schwarz / black |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:10 |
| resolution: | 1920 x 1200 |
| brightness: | 800 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/ Handschuh/ finger/ glove |
| CPU Typ: | Core i5 |
| CPU Model: | 1135G7 |
| CPU speed: | 2,40 GHz |
| CPU cores: | 4 |
| RAM size (MB): | 8192 |
| RAM max. Größe (MB: | 32768 |
| SSD capacity: | 128 |
| SSD number: | 1 |
| safety: | TPM 2.0 |
| WLAN: | Optional / optional |
| Bluetooth: | Optional / optional |
| WWAN: | Optional / optional |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| Video: | 2x Mirco HDMI |
| USB: | 1x USB 2.0 |
| LAN: | 1x Giga LAN M8 |
| Audio: | 1 x Speaker |
| Power: | 1x 19 V/DC, DC plug |
| controls: | 19 Keys: 1x Power, 18x Function |
| operating system: | Windows 10 IoT Enterprise |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| Shock: | MIL-STD-810H Method 516.6 Procedure I |
| Vibration: | MIL-STD-810H Method 514.8 Procedure I |
| voltage input DC: | 19 V/DC |
| external power supply: | 19 V/DC, 100 - 240 V/AC, DC plug |
| battery: | 11.4V, 3500 mAh Battery (3S1P) |
