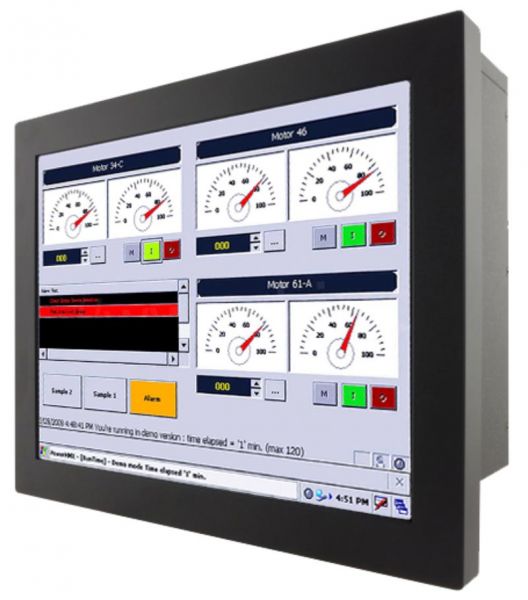

WM 15-IB70-CH-PRS
Touch-Screen funzionamento con un dito

Chassis Panel PC for professional use Industrial Panel PC in sturdy steel sheet housing Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

01-Chassis-Industrie-Panel-PC-R15IB7T-CHC3-mT.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
01-Chassis-Industrie-Panel-PC-R15IB7T-CHC3-mT.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine: 23152095
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • Resistiver Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23152095
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: WM-Serie
Manufacturer item number: R15IB7T-CHC3
mechanics: Chassis (VESA-Mounting)
dimensions width: 36
dimensions height: 29
dimensions depth: 7,9
weight: 0
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP54
protection device: IP20
colour: RAL 9004 / signal black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount
cooling: lüfterlos / fanless
Display-diagonal (inch): 15
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 250 cd/m²
contrast: 500:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: RS-232
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 43 Watt
VGA: 1 x 15-pin D-sub
USB: 1 x USB 3.0, 3 x USB 2.0
serial: 2 x RS-232, 1 x RS232/422/485
Audio: 1 x Line-in (3,5 mm), 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
PS/2: 2x Mini-DIN
Mainboard form factor: Mini-ITX
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU cores: 4
CPU socket: CPU Onboard
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 1.2
connections SATA: 1
CPU class: Atom / Celeron
SSD design: 2.5"
SSD capacity (GB): 120
RAID-System: Nein / no
CD/DVD-Writer : Nein / no
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 1
Betriebssystem: Optional
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
Weiterführende Links zu "WM 15-IB70-CH-PRS"
Verfügbare Downloads:
