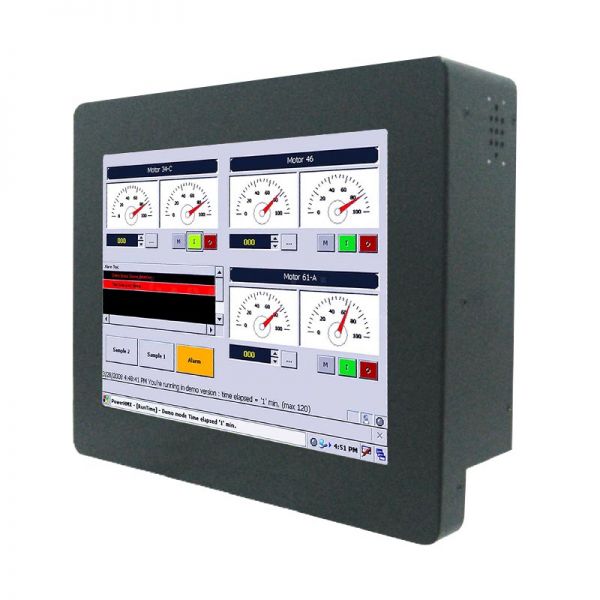

WM 08-IB32-CH-PRU
Touch-Screen funzionamento con un dito

Chassis-Panel-PC für den professionellen Einsatz
Panel-Industrie-PC in robustem Stahlblech-Gehäuse
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Einfache Installation mit rückseitiger VESA-Montageschnittstelle
Langzeitverfügbarkeit

01-Front-right-R08IB3S-CHU1 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
01-Front-right-R08IB3S-CHU1 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
13-Chassis-Panel-PC-Interfaces / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
13-Chassis-Panel-PC-Interfaces / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
15-Chassis-Panel-PC-Customized / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
15-Chassis-Panel-PC-Customized / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung

Numero Ordine: 23080056
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23080056
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: R08IB3S-CHU1
mechanics: Chassis (VESA-Mounting)
dimensions width: 23,6
dimensions height: 19
dimensions depth: 6
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP20
protection device: IP20
colour: RAL 9004 / signal black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 8,4
aspect ratio: 4:3
resolution: 800 x 600
brightness: 600 cd/m²
contrast: 600:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC
voltage input AC: 110 - 240 V/AC
external power supply: 12 V/DC, 100 - 240 V/AC, DC plug
input: 35 Watt
HDMI: 1 x HDMI (Type-A)
USB: 1 x USB 3.0, 1 x USB 2.0
serial: 1 x RS-232, 1 x RS232/422/485
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: 3,5"
chipset: Intel System on chip
CPU Typ: Atom
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1066
Grafik Controller: Intel HD Graphics Z3700 series
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 2.0
connections SATA: 1
CPU class: Atom / Celeron
MiniPCIe Slot SSD : 1
SSD design: mSATA
SSD capacity (GB): 120
RAID-System: Nein / no
CD/DVD-Writer : Nein / no
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
Bluetooth : Nein / no
camera: Nein / no
Barcode Scanner: Nein / no
RFID Reader : Nein / no
operating system: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
