W22IB3S-SPA3-B
Multitouch-Screen, Projected-Capacitive (PCAP)

Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability

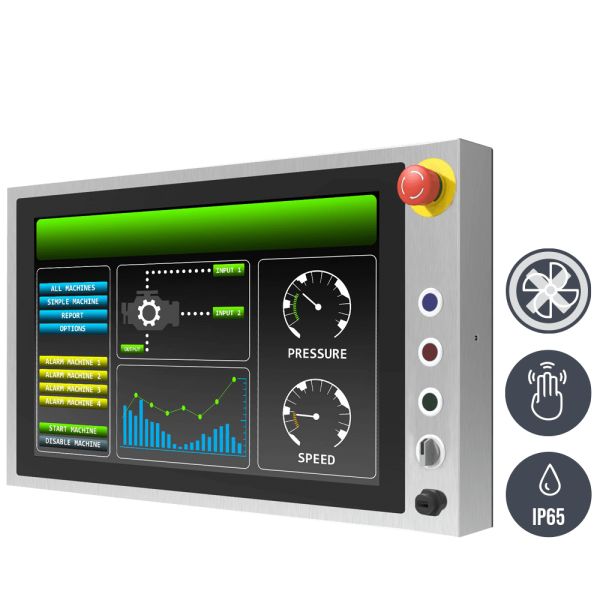

02-W22IB3S-SPA3-B-Front-right.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-W22IB3S-SPA3-B-Front-right.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine: 23220970
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Komplett aus Edelstahl
  • Rundum IP65 geschützt inkl. Schnittstellen
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23220970
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: B-Serie
Manufacturer item number: W22IB3S-SPA3-B
mechanics: Chassis Edelstahl / stainless steel (VES
dimensions width: 59,5
dimensions height: 33,7
dimensions depth: 6,9
Material housing: Edelstahl / stainless steel
Material Front : Edelstahl / stainless steel
protection front: IP65
protection device: IP65
colour: Edelstahl gebürstet / brushed stainless
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 200 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 21,5
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 3000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC (M12 type)
external power supply: 12 V/DC, 100 - 240 V/AC, IP65
USB: 2 x USB 2.0 (M12 type)
serial: 1 x RS-232 (M12 type)
LAN: 1x RJ45 - 10/100/1000 Mbps (IP65)
chipset: Intel System on chip
CPU Typ: Celeron
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: DDR3
RAM speed: 1600
Grafik Controller: Graphics in CPU
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 2.0
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
Betriebssystem: Windows 10 IoT Enterprise
operating-system language version: deutsch / english / italian
operating temperatur min.: 0°C
operating temperatur max.: 45°C
warranty: 24 Monate / 24 months
Weiterführende Links zu "W22IB3S-SPA3-B"
Verfügbare Downloads:
