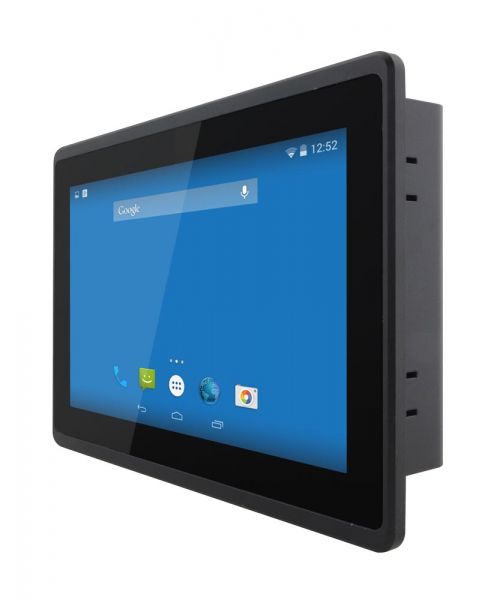

W07FA3S-EHT1
Multitouch-Screen, Projected-Capacitive (PCAP)
HMI-Panel-PC mit Multitouch für den professionellen Einsatz
Panel-Industrie-PC in robuster Stahlblechausführung
Stabile Aluminium-Frontplatte (IP65-geschützt)
Ebene PCAP-Glasfront ohne Schmutzkanten
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Panelmount-Einbau mit rückseitigen Halteklammern
Langzeitverfügbarkeit
01-Front-right-W07FA3S-EHT1 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
12-W10IB3S-Interfaces / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23070025
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23070025 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | E-Serie HMI |
| Manufacturer item number: | W07FA3S-EHT1 |
| mechanics: | Panel Mount |
| dimensions width: | 18,5 |
| dimensions height: | 12,8 |
| dimensions depth: | 5,6 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP22 |
| colour: | RAL 9004 / signal black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 7 |
| aspect ratio: | 16:9 |
| resolution: | 1024 x 600 |
| brightness: | 320 cd/m² |
| contrast: | 500:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-24 V/DC |
| input: | 25 Watt |
| HDMI: | 1 x Micro HDMI |
| USB: | 1 x USB 2.0, 1 x USB OTG |
| serial: | 1 x RS-232/422/485 |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (IP65) |
| Mainboard form factor: | i. MX6 |
| chipset: | SoC |
| CPU Typ: | A9 |
| CPU Model: | Cortex A9 |
| CPU speed: | 1,0 GHz |
| CPU cores: | 2 |
| CPU socket: | CPU Onboard |
| RAM size (MB): | 1024 |
| RAM max. size (MB): | 1024 |
| RAM Number of benches: | 1 |
| RAM Typ: | LPDDR3 |
| CPU class: | ARM Cortex |
| SSD design: | eMMC |
| SSD max. number: | 1 |
| SSD capacity (GB): | 16 |
| Ethernet connections: | 1 x RJ-45/1 x RJ-45 LAN or optional PoE |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| WLAN : | Nein / no |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| operating system: | Android 6.0 |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Android 6.0, Ubuntu 16.04, Linux Kernel |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
