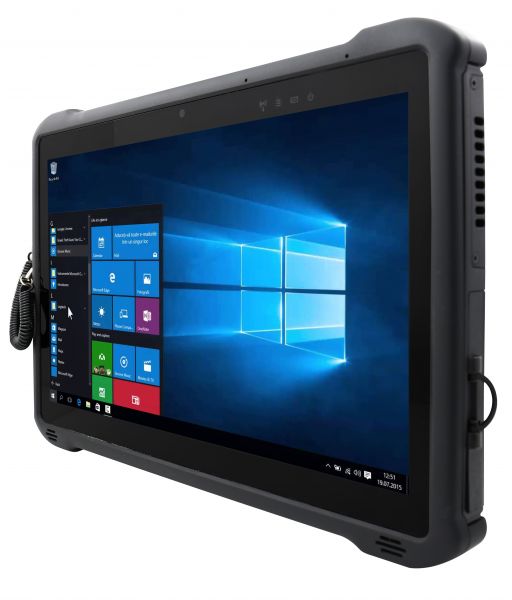

M116P
Tablet industriali rugged

Tablet-PC für den professionellen Einsatz
Ruggedized Tablet in robustem Aluminium-Gehäuse
Schutzart IP65 rundum inkl. Schnittstellen
Schock-, Vibrations- und Sturz-Resistenz (MIL-STD-810G)
Multi-Touch (PCAP) mit Handschuh-, Regen- und Stylus-Modus
Vielfältige Optionen und Zubehör für Datenerfassung, Kommunikation, Docking, Montage, Stromversorgung, Peripherie und Transport
Der ideale Begleiter in Lager, Logistik, Automotive, Outdoor, Smart Factory, Field Service etc.

01-Front-right-M116P / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
01-Front-right-M116P / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Front-M116P / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
02-Front-M116P / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets

Numero Ordine: 25130026
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • Schutzkappen an den Ecken
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 25130026
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M116
mechanics: Rugged Tablet PC
dimensions width: 30,06
dimensions height: 20,2
dimensions depth: 2,25
weight: 1,4
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
cooling: lüfterlos / fanless
Display-diagonal (inch): 11,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 850 cd/m²
contrast: 1000:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Pentium
CPU Model: N4200
CPU speed: 1,1 GHz
CPU cores: 4
RAM size (MB): 4096
RAM Typ: DDR4
RAM speed: 2400
SSD design: M.2
SSD capacity: 128
SSD number: 1
safety: TPM 2.0 und Kensington Lock
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Ja / yes
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
Video: 1x Mirco HDMI
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
serial: 1x RS-232 über USB-C Adapter (optional)
LAN: 1x RJ45 über USB-C Adapter (optional)
Card Slot: 1x Micro SD Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Power: 1x 19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 4 Keys: Power, Volume, Fn1, Fn2
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft
voltage input DC: 19 V/DC
voltage input AC: 100 - 240 V/AC
battery: 7.7V, 5900 mAh Li-Polymer Battery (2S1P)
battery Hot-Swap: Ja / yes
