Industry-PC BoxedLine BL1042
PC industriale montaggio parete

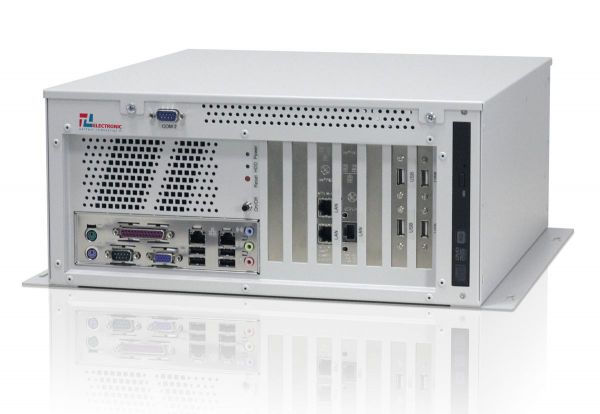

Industrial PC for professional wallmount use Industrial computer in sturdy wall-mountable steel sheet housing Mainboard version (ATX) 7 x expansion slot 120 mm front and 2 x 60 mm rear fan Safe fixing of all cables and moving parts Configuration and interfaces as desired Customer specific adjustments in mechanics and design Designed for industrial applications in continuous operation Easy installation with mounting bars Made in Germany Long-term availability
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
Numero Ordine: | 13000152 |
Manufacturer: | TL |
Matchcode manufacturer: | nein |
Manufacturer: | TL Electronic |
series name: | BoxedLine |
mechanics: | Box-PC |
dimensions width: | 36,0 |
dimensions height: | 16,0 |
dimensions depth: | 37,0 |
weight: | 10 |
Material housing: | Stahlblech / steel sheet |
Material Front : | Stahlblech / steel sheet |
protection front: | IP20 |
protection device: | IP20 |
colour: | RAL 7035 / light grey |
controls: | 2 Keys: Power, Reset, Status-LEDs |
wall mounting: | Ja / yes |
cooling: | aktiv / fan cooling |
Mainboard form factor: | ATX |
chipset: | Intel Q170 |
CPU Typ : | Core i5 |
CPU Model : | 7500 |
CPU 64bit : | Ja |
CPU speed: | 3400 |
CPU cores: | 4 |
CPU socket: | LGA1151, H4 |
CPU alternative option 1: | Core i3-7xxx |
CPU alternative option 2: | Core i7-7xxx |
RAM size (MB): | 4096 |
RAM max. size (MB): | 32768 |
RAM Number of benches: | 4 |
RAM Typ : | DDR4 |
RAM speed: | 2133 |
PCI Express x16 : | 1 |
PCI Express x4 : | 2 |
PCI : | 5 |
Grafik Controller: | Intel HD Graphics 630 |
Ethernet Controller: | Intel PHY219-LM + 210-AT |
Audio Controller: | Realtek ALC888S HD Codec |
connections SATA: | 6 |
USB internal connections: | 4x USB 2.0, 2x USB 3.0 |
Connections Serial internal: | 5x RS-232, 1x RS-232/422/485 |
Mini-PCIe-slot: | 1 |
Digital I/O : | Optional / optional |
HDD design: | 3.5" |
HDD max. number: | 2 |
HDD connection: | SATA 3.0 |
HDD capacity (GB): | 1000 |
SSD max. number: | 2 |
RAID-System : | Ja / yes |
alternate Caddies: | Optional / optional |
CD/DVD-Writer : | Optional / optional |
Display: | 1x VGA, 1x DVI-D |
USB : | 4 x USB 3.0 |
LAN: | 2x RJ45 - 10/100/1000 Mbps |
Audio : | Line-Out, Line-In, Mic in |
Seriell : | 3 x RS-232 |
PS/2 : | 2 x Mini-DIN |
controls: | Power On/Off |
voltage input AC: | 100 - 240 V/AC |
power adapter: | 400 Watt ATX, PS/2, intern |
operating-system support: | Optional / optional |
operating temperatur min.: | 0°C |
operating temperatur min.: | 50°C |
warranty: | 24 Monate / 24 months |
