BL1042 - DQ370 - i3
PC industriale montaggio parete

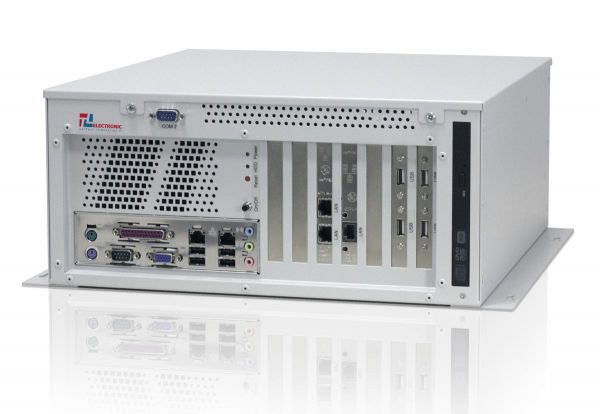

Industrial PC for professional wallmount use Industrial computer in sturdy wall-mountable steel sheet housing Mainboard version (ATX) 7 x expansion slot 120 mm front and 1 x 120 mm rear fan Safe fixing of all cables and moving parts Configuration and interfaces as desired Customer specific adjustments in mechanics and design Designed for industrial applications in continuous operation Easy installation with mounting bars Made in Germany Long-term availability
01-Wallmount-Industrie-PC-BL1042 / TL Produkt-Welten / Industrie-PC / Wandmontierbare Industrie-PC
02-Wallmount-Industrie-PC-Front-BL1042 / TL Produkt-Welten / Industrie-PC / Wandmontierbare Industrie-PC
04-Wallmount-Industrie-PC-Rear-BL1042 / TL Produkt-Welten / Industrie-PC / Wandmontierbare Industrie-PC
06-Wallmount-Industrie-PC-Mounting-Brackets-BL1042 / TL Produkt-Welten / Industrie-PC / Wandmontierbare Industrie-PC
Numero Ordine:
13000177
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 13000177 |
| Manufacturer: | TL |
| Matchcode manufacturer: | nein |
| Manufacturer: | TL Electronic |
| series name: | BoxedLine |
| mechanics: | Box-PC |
| dimensions width: | 36,0 |
| dimensions height: | 16,0 |
| dimensions depth: | 37,0 |
| weight: | 10 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| wall mounting: | Ja / yes |
| cooling: | aktiv / fan cooling |
| Mainboard form factor: | ATX |
| chipset: | Intel Q370 |
| CPU Typ : | Core i3 |
| CPU Model : | 8100 |
| CPU 64bit : | Ja |
| CPU speed: | 3,6 GHz |
| CPU cores: | 4 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 4 |
| RAM Typ : | DDR4 |
| RAM speed: | 2400 |
| PCI Express x16 : | 1 |
| PCI Express x4 : | 3 |
| PCI Express x1 : | 1 |
| PCI : | 1 |
| Grafik Controller: | Intel HD Gen 9 Graphics |
| Ethernet Controller: | Intel I211IT + I219LM |
| Audio Controller: | Realtek ALC888 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 4 |
| USB internal connections: | 4 x USB 2.0, 2 x USB 3.1 Gen 1 |
| Connections Serial internal: | 4 x RS-232, 1 x RS-232/422/485 |
| Mini-PCIe-slot: | 1 |
| Digital I/O : | Ja / yes |
| HDD max. number: | 2 |
| SSD design: | 2.5" |
| SSD max. number: | 2 |
| SSD capacity (GB): | 256 |
| RAID-System : | Ja / yes |
| alternate Caddies: | Optional / optional |
| CD/DVD-Writer : | Optional / optional |
| Display: | 1x VGA, 2x DP |
| USB : | 2xUSB 3.1Gen2, 2xUSB 3.1Gen1, 2xUSB 2.0 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| Seriell : | 1 x RS-232/422/485 |
| PS/2 : | 1x Mini-DIN |
| controls: | Power On/Off |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
