IE32SB3101-6L
PC embedded

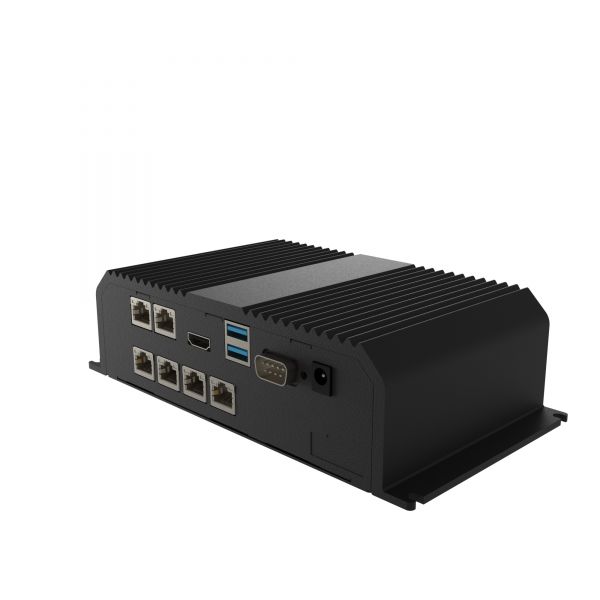

IE3SB3-101 M Series Box PC Intel Celeron Elkhart Lake N6211 Processor Supports 6x LAN Supports 2x USB 3.2 Gen 1 Optional Capture Card for HDMI input or CVBS input Support wide range 9-29 V DC input Fanless design Desk Mount
01-Industrie-Embedded-PC-IE32SB3-101-6L / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrie-Embedded-PC-IE32SB3-101-6L / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-IE32SB3-101-6L / TL Produkt-Welten / Industrie-PC / Embedded-PC
Numero Ordine:
15000607
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000607 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | EmbeddedLine |
| Manufacturer item number: | IE32SB3-101-6L |
| mechanics: | Embedded-PC |
| dimensions width: | 20,5 |
| dimensions height: | 5,5 |
| dimensions depth: | 11,0 |
| Material housing: | Aluminium / aluminium |
| colour: | schwarz / black |
| controls: | 1 Key: Power On/Off |
| cooling: | lüfterlos / fanless |
| CPU Typ : | Celeron |
| CPU Model : | N6210 |
| CPU 64bit : | Ja |
| CPU speed: | 1,2GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1493 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ : | SO-DDR4 |
| RAM speed: | 3200 |
| Grafik Controller: | Intel UHD Gen 10 Graphics |
| Ethernet Controller: | 2x Intel I225 + 4x Intel I226 |
| safety: | TPM 2.0 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Display: | 1x HDMI 2.0 |
| USB : | 2 x USB 3.2 Gen2x1 (Type-A) |
| LAN: | 6x RJ45 - 10/100/1000 Mbps |
| Audio : | on board |
| Seriell : | 1 x RS 232, 1-2 x RS232 (optional) |
| voltage input DC: | 12 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| operating-system support: | Optional / optional |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 55°C |
| warranty: | 24 Monate / 24 months |
