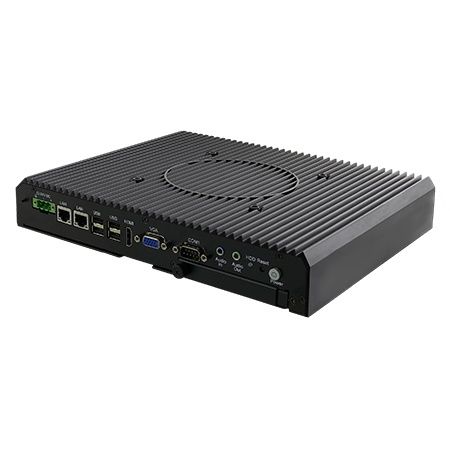

IBMH100
PC embedded
Modular Industrial PC for professional use Industrial computer in sturdy steel sheet / aluminium housing 1 x expansion slot 1 x drive bays tool-less accessible System components are accessible behind service-friendly covers Wireless fail-safe construction (plugged and screwed components only) Designed for industrial applications in continuous operation Easy installation with mounting bars or VESA mounting interface Long-term availability
01-Industrie-Embedded-PC-IBMH100 / TL Produkt-Welten / Industrie-PC / Embedded-PC
Numero Ordine:
15100538
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15100538 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | EmbeddedLine |
| Manufacturer item number: | IBMH100 |
| mechanics: | Embedded-PC |
| dimensions width: | 27,6 |
| dimensions height: | 20,7 |
| dimensions depth: | 4,52 |
| Material housing: | Aluminium / aluminium |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | RAL 9005 Tiefschwarz / Jet black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| wall mounting: | Ja / yes |
| cooling: | lüfterlos / fanless |
| chipset: | Intel System on chip |
| CPU Typ : | Atom |
| CPU Model : | E3845 |
| CPU 64bit : | Ja |
| CPU speed: | 1,91 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1170 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 2 |
| RAM Typ : | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| Ethernet Controller: | 2 x Intel Ethernet Controller |
| Mini-PCIe-slot: | 1 |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Display : | 1x HDMI (optional), 1x VGA (optional) |
| USB : | 4 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| serial: | 1 x RS-232 |
| controls: | Power On/Off, Kontroll-LEDs |
| voltage input DC: | 12-24 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| WLAN: | Optional / optional |
| operating-system support: | Optional / optional |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
