BS-U830
PC embedded

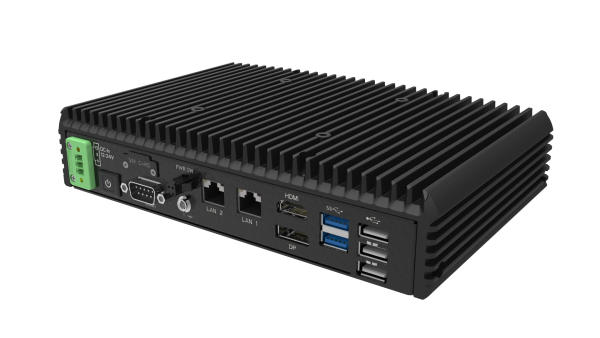

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability
04-Embedded-Industrie-PC-BS-U830.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-Embedded-Industrie-PC-BS-U830.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Embedded-Industrie-PC-BS-U830.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Embedded-Industrie-PC-BS-U830.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
Numero Ordine:
15000625
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000625 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | BS-U830 |
| mechanics: | Embedded-PC |
| dimensions width: | 21,75 |
| dimensions height: | 5,0 |
| dimensions depth: | 14,06 |
| weight: | 2 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| wall mounting: | Optional / optional |
| DIN-Rail: | Optional / optional |
| cooling: | lüfterlos / fanless |
| CPU Typ : | Celeron |
| CPU Model : | J6412 |
| CPU 64bit : | Ja |
| CPU speed: | 2,0 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1493 |
| CPU alternative option 1: | Intel Atom x6212RE |
| CPU alternative option 2: | Intel Atom x6425RE |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 1 |
| RAM Typ : | SO-DDR4 |
| RAM speed: | 3200 |
| Grafik Controller: | Intel UHD Gen 10 Graphics |
| HDD design: | 2.5" |
| HDD max. number: | 1 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| Display: | 1x DP, 1x HDMI |
| USB : | 2x USB 3.0, 3x USB 2.0 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out |
| Seriell : | 1 x RS-232/422/485 |
| SIM Card Slot : | Ja / yes |
| controls: | Power On/Off |
| USB : | 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| serial: | 1 x RS-232/422/485 |
| Digitale I/O : | 1 x 6in / 6out |
| voltage input DC: | 12-24 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| WLAN: | Optional / optional |
| operating-system support: | Optional / optional |
| operating temperatur min.: | -40°C |
| operating temperatur min.: | 60°C |
| warranty: | 24 Monate / 24 months |
