BS-E099
PC embedded

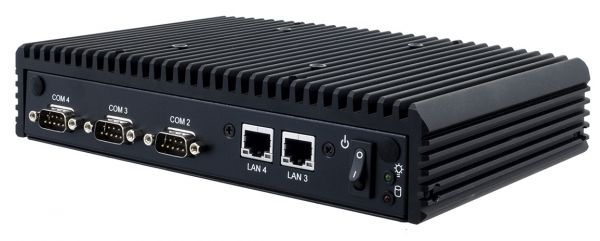

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability
02-Industrie-Embedded-PC-BS-E099.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrie-Embedded-PC-BS-E099.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
05-Industrie-Embedded-PC-BS-E099-Front-right.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
Numero Ordine:
15000508
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000508 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | BS-E099 |
| mechanics: | Embedded-PC |
| dimensions width: | 21,8 |
| dimensions height: | 4,5 |
| dimensions depth: | 14,8 |
| weight: | 1,8 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | Nein / no |
| wall mounting: | Optional / optional |
| DIN-Rail: | Optional / optional |
| cooling: | lüfterlos / fanless |
| chipset: | Intel System on chip |
| CPU Typ : | Core i5 |
| CPU Model : | 7300U |
| CPU 64bit : | Ja |
| CPU speed: | 2600 |
| CPU cores: | 2 |
| CPU socket: | FCBGA1356 |
| CPU alternative option 1: | Core i3-7100U |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ : | DDR4 |
| Grafik Controller: | Intel HD Graphics 620 |
| connections SATA: | 1 |
| Mini-PCIe-slot: | 1 |
| HDD design: | 2.5" |
| HDD max. number: | 1 |
| HDD connection: | SATA 3.0 |
| HDD capacity (GB): | 500 |
| MiniPCIe Slot SSD : | 1 |
| USB : | 2 x USB 2.0 |
| Seriell : | 1 x RS 232/422/485, 2 x RS232 (optional) |
| controls: | Power On/Off |
| Display : | 1 x DisplayPort, 1 x HDMI |
| USB : | 4 x USB 3.1, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out |
| serial: | 1 x RS-232 |
| voltage input DC: | 12 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| WLAN: | Optional / optional |
| operating-system support: | Windows 10 / Ubuntu 16.04 |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "BS-E099"
Verfügbare Downloads:
- CE Konformitätserklärung DoC IPC EL1096
- CE_Embedded Industrial PC EL1096 Instruction manual (english) 20190904
- CE_Embedded Industrial PC EL1096 Istruzioni per l'uso _italiano_ 20190904
- CE_Embedded-Industrie-PC EL1096 Gebrauchsanleitung 20190904
- EL1096 Manual_V.1.0
- Drawing Embedded-Industrie-PC BS-E099 240902.pdf
