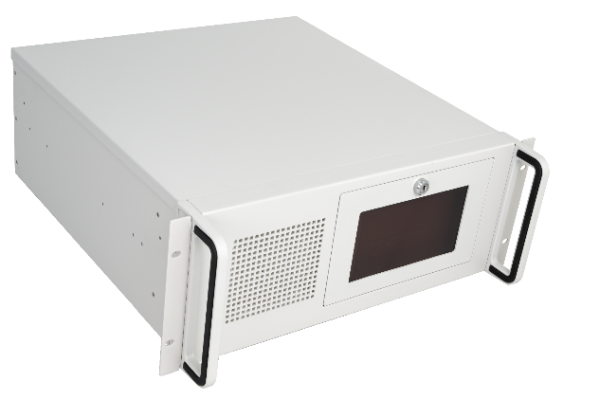

CL4501 - PQ170
7 Slots (ATX Mainboard)
19-inch Industrial PC for professional use Industrial computer in sturdy steel sheet housing Aluminium front with lockable door Mainboard version (ATX) 7 x expansion slot 2 x 80 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Made in Germany Long-term availability
01-19-Zoll-Rack-Industrie-PC-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
02-19-Zoll-Rack-Industriecomputer-Front-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
03-19-Zoll-Rack-Industriecomputer-Front2-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
05-Industriecomputer-CL450x-Filter / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
11-19-Zoll-Industrie-PC-ATX-Mainboard-CL45x1 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
Numero Ordine:
11402029
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Manufacturer: | TL |
| Matchcode manufacturer: | nein |
| Manufacturer: | TL Electronic |
| series name: | ClassicLine |
| mechanics: | 19" Rack Mount |
| dimensions width: | 48,3 |
| dimensions height: | 17,7 |
| dimensions depth: | 45,2 |
| weight: | 16 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| Material Front : | Aluminium / aluminum |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | Nein / no |
| wall mounting: | Nein / no |
| DIN-Rail: | Nein / no |
| cooling: | aktiv / fan cooling |
| Bauhöhe: | 4HE |
| Mainboard form factor: | ATX |
| chipset: | Intel Q170 |
| CPU Typ : | Core i3 |
| CPU Model : | 7100 |
| CPU 64bit : | Ja |
| CPU speed: | 3900 |
| CPU cores: | 2 |
| CPU socket: | LGA1151, H4 |
| CPU alternative option 1: | Core i5-6xxx |
| CPU alternative option 2: | Core i5-7xxx |
| CPU alternative option 3: | Core i7-7xxx |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 65536 |
| RAM Number of benches: | 4 |
| RAM Typ : | DDR4 |
| RAM speed: | 2133 |
| PCI Express x16 : | 1 |
| PCI Express x4 : | 1 |
| PCI : | 5 |
| Grafik Controller: | Intel HD Graphics 630 |
| Ethernet Controller: | Intel PHY219-LM + 210-AT |
| Audio Controller: | Realtek ALC888S HD Codec |
| connections SATA: | 6 |
| USB internal connections: | 4x USB2.0, 2x USB3.0 |
| Connections Serial internal: | 5x RS-232, 1x RS-232/422/485 |
| Mini-PCIe-slot: | 1 |
| Digital I/O : | Optional / optional |
| HDD design: | 3.5" |
| HDD max. number: | 4 |
| HDD connection: | SATA 3.0 |
| HDD capacity (GB): | 500 |
| SSD design: | 2.5" |
| SSD max. number: | 4 |
| RAID-System : | Optional / optional |
| alternate Caddies: | Optional / optional |
| CD/DVD-Writer : | Ja / yes |
| USB : | 2 x USB 2.0 |
| controls: | Power On/Off, Reset, Kontroll-LEDs |
| Display : | 1x VGA, 1x DVI-D |
| USB : | 4 x USB 3.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 1 x RS-232, 1 x RS232/422/485 |
| PS/2: | 2x Mini-DIN |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| WLAN: | Nein / no |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
