R19IAD3S-67FTP(HB)
Multitouch-Screen, Projected-Capacitive (PCAP)
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design (IP67 protected) Robust plastic front panel Shock and vibration resistant acc. MIL-STD-810G Designed for industrial applications in continuous operation Long-term availability

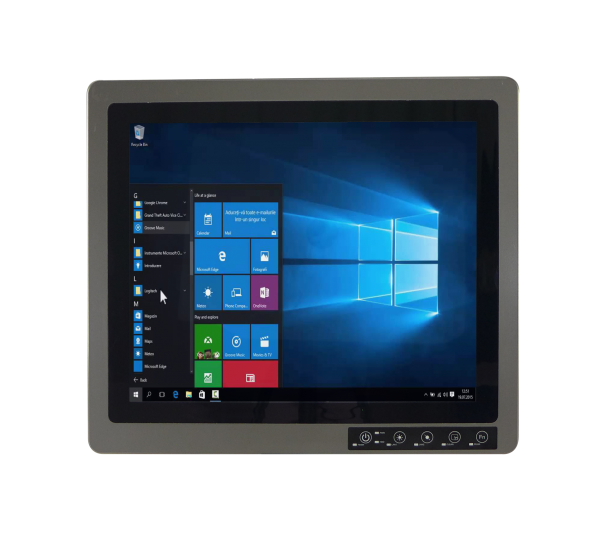

02-G-WIN-Panel-PC-R19IAD3S-67FTP(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

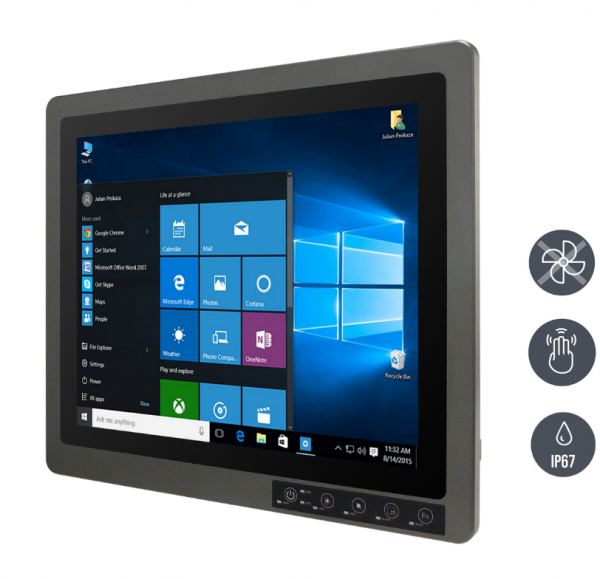

01-G-WIN-Panel-PC-R19IAD3S-67FTP(HB).png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23191905
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23191905 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | G-WIN-Serie |
| Manufacturer item number: | R19IAD3S-67FTP(HB) |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 47,4 |
| dimensions height: | 41,0 |
| dimensions depth: | 11,1 |
| weight: | 9,8 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection device: | IP67 |
| colour: | schwarz / black |
| controls: | 5 Keys: Power, 4x Function |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 1000 cd/m² |
| contrast: | 1000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-36 V/DC |
| external power supply: | optional |
| USB: | 2 x USB 2.0 (M12 type) |
| serial: | 1 x RS-232 (M12 type) |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (M12 type) |
| CPU Typ: | Core i5 |
| CPU Model: | 1235U |
| CPU 64bit: | Ja |
| CPU speed: | 1,3 GHz |
| CPU cores: | 10 |
| CPU socket: | FCBGA1744 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR5 |
| Grafik Controller: | Intel Iris Xe Graphics |
| safety: | TPM 2.0 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
