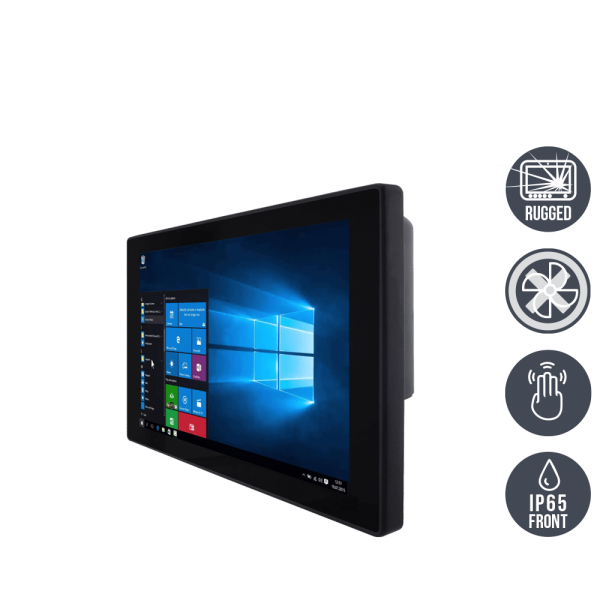

R12IB3S-GCM2
Multitouch-Screen, Projected-Capacitive (PCAP)
12,1" Panel-PC (Fanless) aus der G-WIN GC-Serie
Farbe: schwarz
Schutzart: frontseitig IP65
Maße (BxHxT): 296.2 x 226.7 x 45.5 mm,
VESA-Montageschnittstelle (75x75 mm).
Integrierter 12,1" (4:3) TFT LCD Bildschirm, Kontrast 1000:1,
Helligkeit einstellbar max. 500 cd/m² (optional 1000 cd/m²),
Auflösung 1024 x 768 Bildpunkte.
All-In-One Mainboard mit Intel Celeron N2930,
1 x RS-232 (optional: RS-422/485), 1 x USB 2.0, 1 x USB 3.0,
2 x LAN 10/100/1000 Mbps (Intel), 1 x HDMI (optional),
WLAN (optional), Audio: 2x Lautsprecher,
Versorgungsspannung: 12 V/DC
KONFIGURATION:
- CPU: Intel Celeron Bay Trail-M N2930, 4x 1830 MHz
- RAM: 4096 MB DDR3L SO-DIMM
- SSD: 128 GB, mSATA
- TOUCH: kapazitiver Multi-Touchscreen (PCAP), USB
QUALITÄT / TESTS:
CE-Konform
Prüfungen nach:
Shock: MIL-STD-810G Method 516.6
Shock: MIL-STD-810G Method 514.6
Betriebstemperatur: -0° C bis 50° C
Kompatible Betriebssysteme:
Windows 10 IoT Enterprise / Linux Ubuntu 18.04.
Ursprungsland: Taiwan
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
Numero Ordine: | 23120439 |
Manufacturer: | WM |
Matchcode manufacturer: | nein |
Manufacturer: | Winmate |
series name: | GC-Serie |
Manufacturer item number: | R12IB3S-GCM2 |
mechanics: | Chassis (VESA-Mounting) |
dimensions width: | 29,62 |
dimensions height: | 22,67 |
dimensions depth: | 4,55 |
Material housing: | Stahlblech / steel sheet |
Material Front : | Kunststoff / plastic |
protection front: | IP65 |
colour: | schwarz / black |
controls: | 2 Keys: Power, Reset |
VESA-Mounting Interface: | VESA 75 x 75 mm |
mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
cooling: | lüfterlos / fanless |
Display-diagonal (inch): | 12,1 |
aspect ratio: | 4:3 |
resolution: | 1024 x 768 |
brightness: | 500 cd/m² |
contrast: | 1000:1 |
Display-Technologie: | LCD, LED Backlight |
Touch-Screen or glass: | Projected Capactive / Multi-Touch |
Touch Interface: | USB |
Manufacturer controller: | P-CAP Touchcontroller |
voltage input DC: | 12 V/DC |
external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
HDMI: | 1 x HDMI (optional) |
USB: | 1 x USB 2.0, 1 x USB 3.0 |
serial: | 1 x RS-232 |
Audio: | 2 x Speaker |
LAN: | 2x RJ45 - 10/100/1000 Mbps |
CPU Typ: | Celeron |
CPU Model: | N2930 |
CPU 64bit: | Ja |
CPU speed: | 1,83 GHz |
CPU cores: | 4 |
CPU socket: | FCBGA1170 |
RAM size (MB): | 4096 |
RAM Number of benches: | 1 |
RAM Typ: | SO-DDR3L |
RAM speed: | 1600 |
Grafik Controller: | Intel HD Graphics Z3700 series |
CPU class: | Atom / Celeron |
SSD design: | M.2 |
SSD max. number: | 1 |
SSD capacity (GB): | 128 |
Ethernet connections: | 2 x RJ-45 |
Ethernet data transfer: | 2 x Gigabit-LAN |
Ethernet Controller : | 2 x Intel Gigabit Ethernet Controller |
WLAN : | Optional / optional |
Bluetooth : | optional / optional |
Betriebssystem: | Optional |
operating-system language version: | deutsch / english / italian |
operating temperatur min.: | 0°C |
operating temperatur max.: | 50°C |
warranty: | 24 Monate / 24 months |
