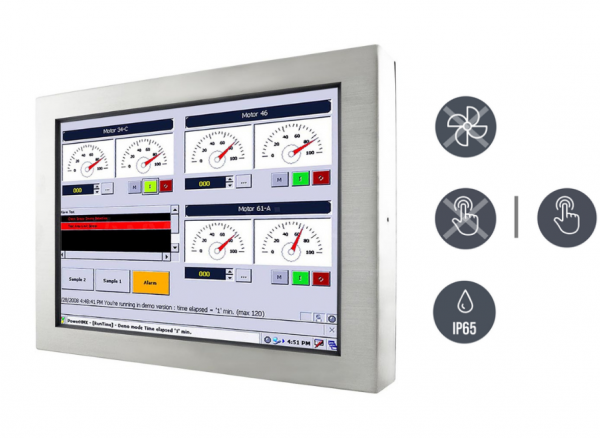

W22IB3S-65A3
no Touch-Screen, Touch-Screen funzionamento con un dito
"Widerstandsfähiger Industrie-Panel-PC aus gebürstetem Edelstahl
Schutzart IP65 rundum inkl. Schnittstellen
Leicht zu reinigen und korrosionsbeständig
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Einfache Installation mit rückseitiger VESA-Montageschnittstelle
Perfekt für Lebensmittel-, Chemie-, Pharmaindustrie, Medizintechnik, Verfahrenstechnik, Anlagenbau etc.
Langzeitverfügbarkeit "
01-Industrie-Panel-PC-IP65-Edelstahl-W22IB3S-65A3-v1.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Resistive / Glas (optional)
Numero Ordine:
23221003
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23221003 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | W22IB3S-65A3 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 55,0 |
| dimensions height: | 34,0 |
| dimensions depth: | 5,86 |
| weight: | 10,7 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP65 |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 200 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive / Glas (optional) |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC (M12 type) |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| USB: | 2 x USB 2.0 (M12 type) |
| serial: | 1 x RS-232 (M12 type) |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (M12 type) |
| CPU Typ: | Celeron |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,83 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1170 |
| RAM size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| safety: | TPM 2.0 |
| CPU class: | Atom / Celeron |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | 2x Intel I210-AT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "W22IB3S-65A3"
Verfügbare Downloads:
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
- CE Konformitätserklärung DoC Panel-PC WM 22W-IB32-ES-x_20190130
- Drawing Panel-PC WM 22W-IB32-ES 201007
