R19IB7T-PPM1
Multitouch-Screen, Projected-Capacitive (PCAP)

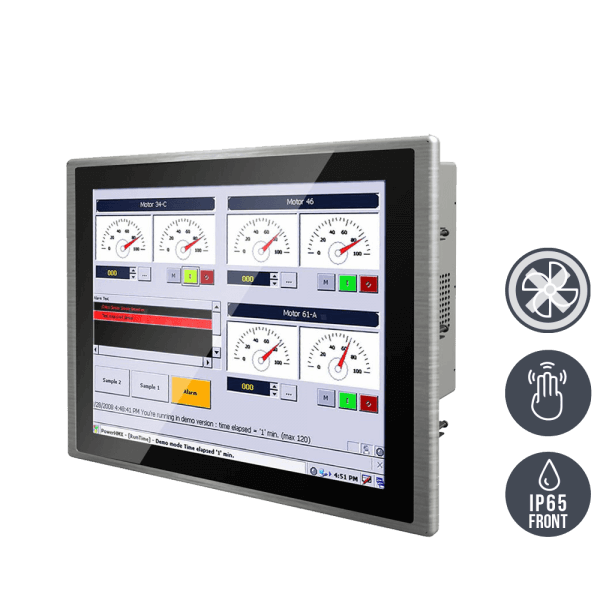

Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability

01-PCAP-Multitouch-Industrie-Panel-PC-R19IB7T-PPM1.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-PCAP-Multitouch-Industrie-Panel-PC-R19IB7T-PPM1.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine: 23191757
prezzo lordo: € 1.695,75
€ 1.425,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP / Multi-Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23191757
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: MTU-Serie
Manufacturer item number: R19IB7T-PPM1
mechanics: Panel Mount
dimensions width: 44,6
dimensions height: 37,0
dimensions depth: 8,7
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: Aluminium eloxiert / anodized aluminum
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 19,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 250 cd/m²
contrast: 1000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 110 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
USB: 1 x USB 3.0, 3 x USB 2.0
serial: 2 x RS-232, 1 x RS232/422/485
Audio: Line-Out, Line-In, Mic in
LAN: 2x RJ45 - 10/100/1000 Mbps
PS/2: 2x Mini-DIN
Mainboard form factor: All in One
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 2.0
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 2
WLAN : Optional / optional
Betriebssystem: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
