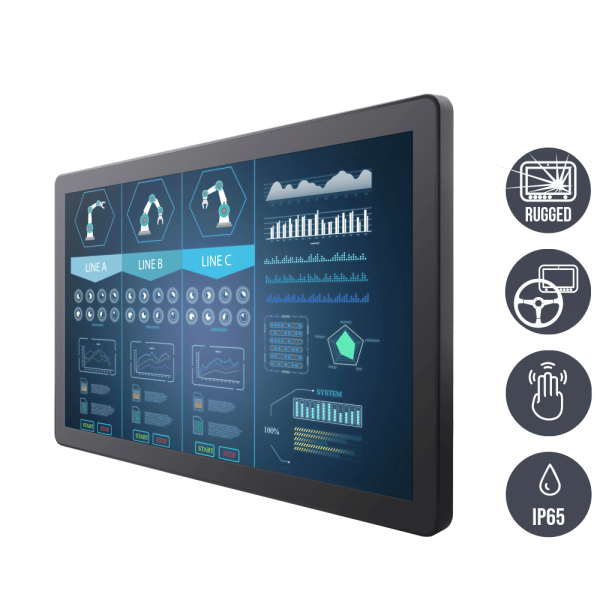

W22L100-GCA3
Multitouch-Screen, Projected-Capacitive (PCAP)
Rugged industrial LCD for stationary and vehicle-mounted use Industrial monitor in sturdy steel sheet housing Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
prezzo lordo: € 868,70
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
Numero Ordine: | 52200809 |
Manufacturer: | WM |
MatchcodeHersteller: | nein |
Manufacturer: | Winmate |
series name: | GC-Serie |
Manufacturer item number: | W22L100-GCA3 |
mechanics: | Chassis (VESA-Mounting) |
dimensions width: | 53,02 |
dimensions height: | 32,17 |
dimensions depth: | 5,49 |
Material housing: | Stahlblech / steel sheet |
Material Front : | Kunststoff / plastic |
protection front: | IP65 |
colour: | schwarz / black |
controls: | 5 Keys: Power, 4x Function |
VESA-Mounting Interface: | VESA 200 x 100 mm, 100 x 100 mm |
mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
Display-diagonal (inch): | 21,5 |
aspect ratio: | 16:9 |
resolution: | 1920 x 1080 |
brightness: | 250 cd/m² |
contrast: | 3000:1 |
Display-Technology: | LCD, LED Backlight |
Touch-Screen or glass: | Projected Capactive / Multi-Touch |
Touch Interface: | USB |
Manufacturer controller: | P-CAP Touchcontroller |
voltage input DC: | 12 V/DC |
external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
VGA: | 1 x 15-pin D-sub |
HDMI: | 1 x HDMI |
operating temperatur min.: | 0°C |
operating temperatur max.: | 50°C |
warranty: | 24 Monate / 24 months |
