W15L100-PTA3
Multitouch-Screen, Projected-Capacitive (PCAP)

Multitouch industrial LCD for professional use Industrial monitor in sturdy plastic housing Flat PCAP glass front without dirt-collecting edges (IP65 Front) Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

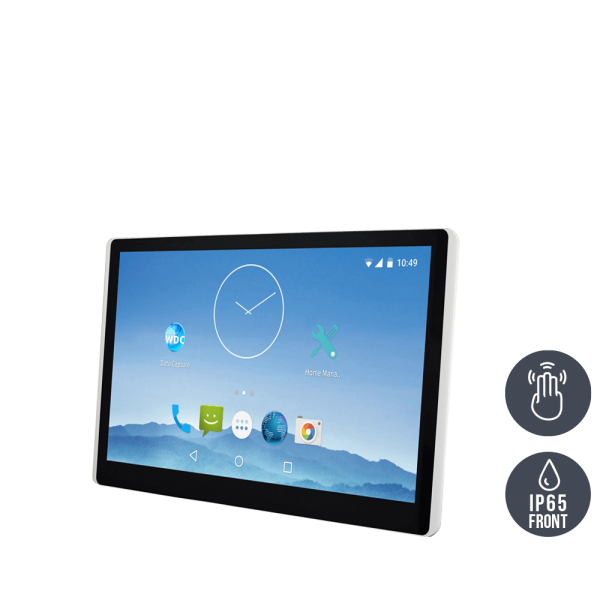

01-Front-W15L100-PTA3.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Front-W15L100-PTA3.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-backside-W15L100-PTA3 / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-backside-W15L100-PTA3 / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Numero Ordine: 51501431
prezzo lordo: € 642,60
€ 540,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Kunststoff-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 51501431
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: PT-Serie
Manufacturer item number: W15L100-PTA3
mechanics: Chassis (VESA-Mounting)
dimensions width: 38,81
dimensions height: 23,3
dimensions depth: 4,0
Material housing: Kunststoff / plastic
Material Front : Kunststoff / plastic
protection front: IP65
protection device: IP20
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 200 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 300 cd/m²
contrast: 700:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
HDMI: 1 x HDMI (Type-A)
USB: 1 x USB 2.0
Audio: 1 x Line-in (3,5 mm), 2 x Speaker
safety: TPM 1.2
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
