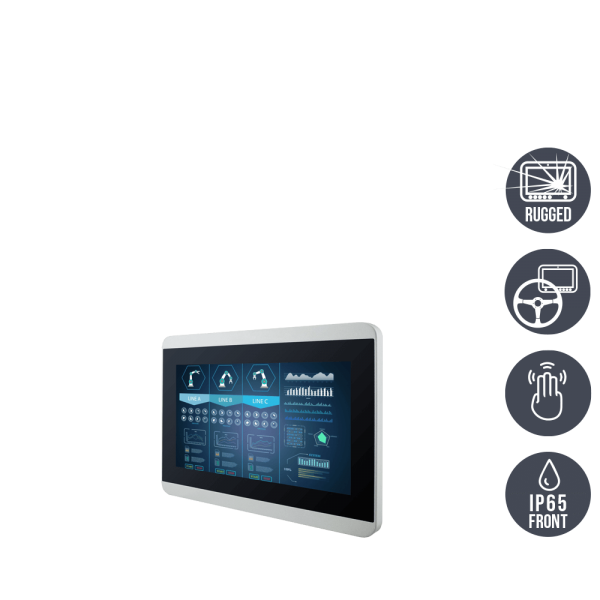

W10L100-GCH2
Multitouch-Screen, Projected-Capacitive (PCAP)

Rugged industrial LCD for stationary and vehicle-mounted use Industrial monitor in sturdy steel sheet housing Robust aluminium front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

01-Chassis-Industriemonitor-W07L100-GCT1.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Chassis-Industriemonitor-W07L100-GCT1.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Chassis-Industriemonitor-W07L100-GCT1 / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Chassis-Industriemonitor-W07L100-GCT1 / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Numero Ordine: 50700006
prezzo lordo: € 464,10
€ 390,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Aluminium-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 50700006
Manufacturer: WM
Manufacturer: Winmate
series name: GC-Serie
Manufacturer item number: W07L100-GCT1
mechanics: Chassis (VESA-Mounting)
dimensions width: 18,94
dimensions height: 14,54
dimensions depth: 3,98
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
protection front: IP65
colour: Aluminium gebürstet / aluminum brushed
controls: 5 Keys: -, +, Power, Esc, Enter
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
Display-diagonal (inch): 7,0
aspect ratio: 4:3
resolution: 1024 x 600
brightness: 320 cd/m²
contrast: 500:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
VGA: 1 x 15-pin D-sub
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
