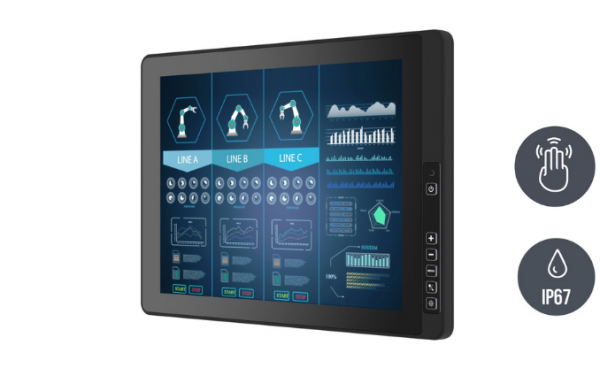

R15L100-67C3-P(HB)
Multitouch-Screen, Projected-Capacitive (PCAP)
Rugged Display for stationary and vehicle-mounted use Industrial Display in sturdy steel sheet housing Robust plastic front panel (IP67 protected) Shock and vibration resistant acc. MIL-STD-810G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
01-Rugged-Industrial-LCD-R15L100-67C3-P(HB)-v1.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Rugged-Industrial-LCD-R15L100-67C3-P(HB).jpg / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-Rugged-Industrial-LCD-R15L100-67C3-P(HB).jpg / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
51501573
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 51501573 |
| Manufacturer: | WM |
| MatchcodeHersteller: | nein |
| Manufacturer: | Winmate |
| series name: | G-WIN-Serie |
| Manufacturer item number: | R15L100-67C3-P(HB) |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 37,94 |
| dimensions height: | 27,84 |
| dimensions depth: | 5,8 |
| weight: | 3,8 |
| Material housing: | Aluminium / aluminium |
| protection device: | IP67 |
| colour: | schwarz / black |
| controls: | 7 Keys: Power, 6x Function |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| Display-diagonal (inch): | 15,0 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 1000 cd/m² |
| contrast: | 2000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 12-pin (M12 type) |
| HDMI: | 1 x HDMI (M12 type) |
| serial: | 1 x RS-232 (M12 type / optional) |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
