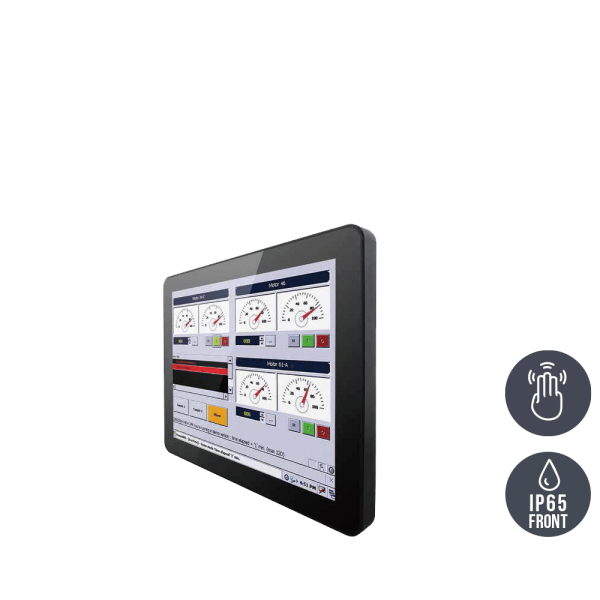

R10L100-PCT2
Multitouch-Screen, Projected-Capacitive (PCAP)
Multitouch industrial LCD for professional use Industrial monitor in sturdy steel sheet housing Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
01-PCAP-Multitouch-Industrie-Monitor-R10L100-PCT2.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
51000253
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 51000253 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | MTU-Serie |
| Manufacturer item number: | R10L100-PCT2 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 25,24 |
| dimensions height: | 19,78 |
| dimensions depth: | 4,3 |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 9004 / signal black |
| controls: | 5 Keys: -, +, Power, Esc, Enter |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| Display-diagonal (inch): | 10,4 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 350 cd/m² |
| contrast: | 1200:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| voltage input AC: | 100 - 240 V/AC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| input: | 15 Watt |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI |
| HDMI: | 1 x HDMI (optional) |
| Video: | 1 x Composite (optional) |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
| IstPKArtikel: | nein |
