W22L100-SPA369
Multitouch-Screen, Projected-Capacitive (PCAP)

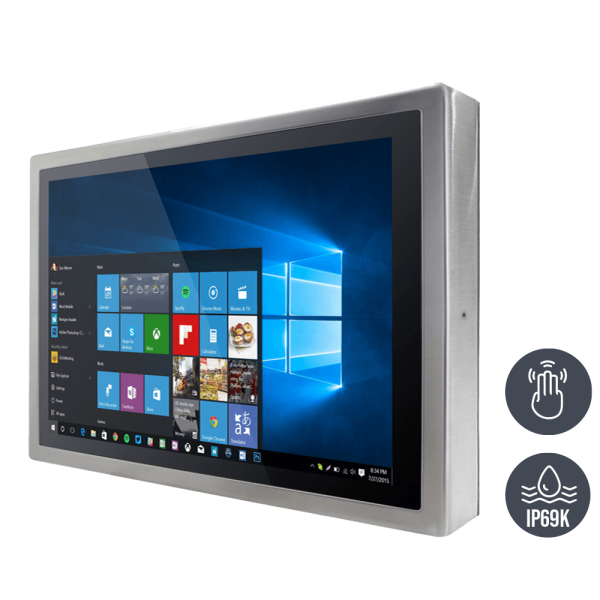

Robust industrial monitor made of brushed stainless steel Protection class IP69K all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability 21,5" (16:9) LCD in robust Flat Stainless Steel Housing Gehäusematerial: SUS 316 / AISI 316 stainless steel Protection class: IP69K Abmaße: 541 x 337 x 56.2 mm Resolution: 1920 x 1080 Pixel Contrast: 3000:1 Brightness: 250 cd/m² Viewing angle: Hor.: -89° to 89°, Vert.: -89° to 89° Videoeingang: 15 pin HD Sub Buchse (VGA) + HDMI (incl. IP67-geschützen Kabel) Versorgungsspannung: 12 V/DC über externes Netzteil mit 100-240 V/AC With rear VESA Mounting (200x100 mm) incl. projected capacitive Multi-Touchscreen (PCAP) Type: W22L100-SPA369 Operating temperature: 0° to 45° C Country of origin: Taiwan
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
| Numero Ordine: | 52200758 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | W22L100-SPA369 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 54,1 |
| dimensions height: | 33,7 |
| dimensions depth: | 5,62 |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP69K |
| protection device: | IP69K |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 200 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, IP65 |
| input: | 50 Watt |
| VGA: | 1 x 12-pin (IP65) |
| DVI: | 1 x DVI (optional) |
| USB: | 1 x USB 2.0 (M12 type) |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
