R10L600-PMP1
no Touch-Screen, Touch-Screen funzionamento con un dito

Industrial LCD for professional use Industrial
monitor in sturdy steel sheet design
Robust aluminium front panel Designed for
industrial applications in continuous operation Panelmount
installation with rear screwed bolts Long-term
availability 10,4“ active Matrix TFT LCD
with Aluminium-Front Panel-Mount, "Type PMA", Color
black, Panel-Mount installation with rear screwed
bolts Dimensions LCD: 260 x 215
x 38 mm, Dimensions Frontplate: 260
x 234 x 6 mm Resolution:
800 x 600 Pixels Contrast: 400:1
Brightness: 600 cd/m² Viewing angle: Hor.:
-70° bis 70°, Vert.: -70° bis
60° Video input: 15 pin HD
Sub Buchse (VGA) Power input: 12
V/DC, incl. external Power supply with
100-240 V/AC Temperature: 0-50° C (Operating),
-10-60° C (Storage) incl. resistive PREMIER-Touchscreen,
RS232 Type: R10L600-PMP1 (old name: WM
10-V-PMA-PRS) Country of Origin: Taiwan

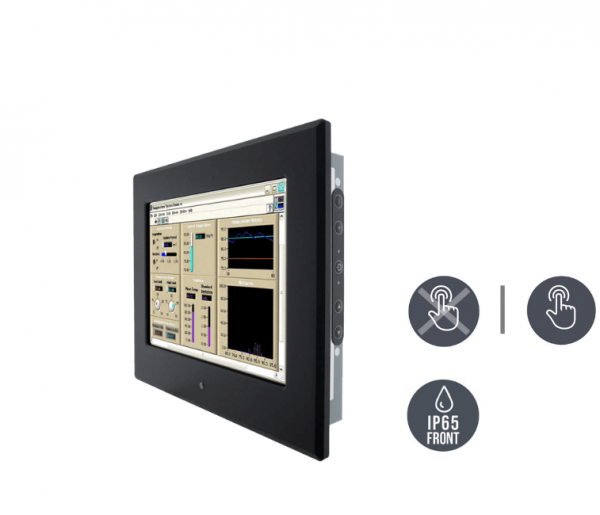

01-Einbau-Industriemonitor-R10L600-PMP1-v1.png / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Resistive / Glas (optional)
01-Einbau-Industriemonitor-R10L600-PMP1-v1.png / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Resistive / Glas (optional)
21-Einbau-Industrie-LCD-R10L600-OFP1 / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
21-Einbau-Industrie-LCD-R10L600-OFP1 / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung


Numero Ordine: 51000317
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Resistive / Glas (optional)
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 51000317
Manufacturer: WM
Manufacturer: Winmate
series name: WM-Serie
Manufacturer item number: R10L600-PMP1
mechanics: Panel Mount
dimensions width: 28,4
dimensions height: 23,4
dimensions depth: 4,3
Material Front : Aluminium / aluminum
protection device: IP20
colour: RAL 9004 / signal black
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Einbau von vorne / front installation
Display-diagonal (inch): 10,4
aspect ratio: 4:3
resolution: 800 x 600
brightness: 600 cd/m²
contrast: 400:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Resistive / Glas (optional)
Touch Interface: USB oder RS-232
Manufacturer controller: Premier
voltage input DC: 12 V/DC
voltage input AC: 100 - 240 V/AC
external power supply: 12 V/DC, 100 - 240 V/AC, DC plug
input: 15 Watt
VGA: 1 x 15-pin D-sub
DVI: 1x DVI-D (optional)
HDMI: 1 x HDMI (optional)
Video: 1 x Composite (optional)
Audio: 1 x Line-in (3,5 mm), 2 x Speaker
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
IstPKArtikel: nein
Weiterführende Links zu "R10L600-PMP1"
Verfügbare Downloads:
