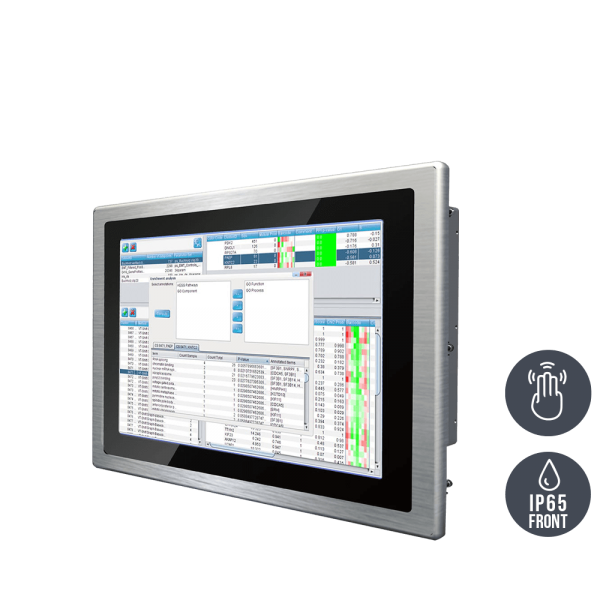

W15L100-PPA4
Multitouch-Screen, Projected-Capacitive (PCAP)

Industrial LCD for professional use Industrial monitor in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

01-PCAP-Multitouch-Industrie-Monitor-W15L100-PPA4.png / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-PCAP-Multitouch-Industrie-Monitor-W15L100-PPA4.png / TL Produkt-Welten / Industriemonitor / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine: 51501556
prezzo lordo: € 999,60
€ 840,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Diverse Einbau-Frontausführungen
  • Frontseitiger IP65-Schutz
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 51501556
Manufacturer: WM
MatchcodeHersteller: nein
Manufacturer: Winmate
series name: MTU-Serie
Manufacturer item number: W15L100-PPA4
mechanics: Panel Mount
dimensions width: 41,5
dimensions height: 27,5
dimensions depth: 6,1
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: Aluminium eloxiert / anodized aluminum
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Einbau von vorne / front installation
Display-diagonal (inch): 15,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 300 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, DC plug
VGA: 1 x 15-pin D-sub
HDMI: 1 x HDMI
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
