R19IT3S-MLA3FP
Informatica per la difesa

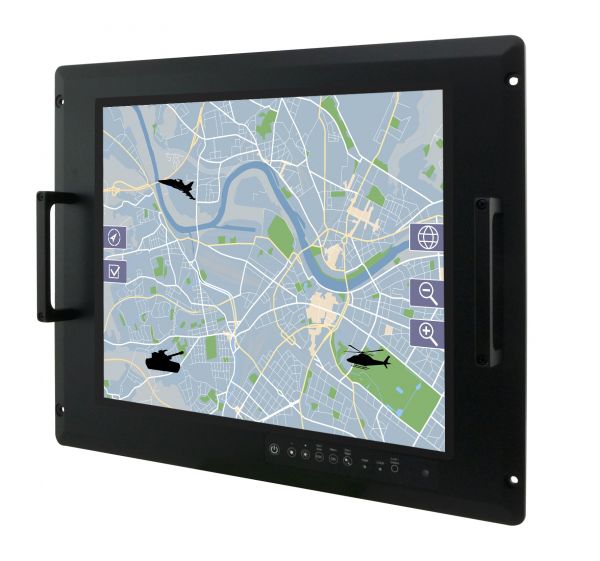

19" (1280x 1024) Defence Panel PC Full IP65 Dust/water resistant Protection (Except I/O parts) Compliant with MIL-STD 461E/F and MIL-STD 810F/G PCAP Multi Touchscreen Aluminum Housing with Anti-Corrosion Treatments 12V DC (MIL-DTL-38999/1 connector) 9V to 36V wide range (Optional) VESA Mount


Numero Ordine: 23191906
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • konform mit MIL-STD-810G/F, MIL-STD-461E/F
  • Antikorrosion
  • Fanless Design
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23191906
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
Manufacturer item number: R19IT3S-MLA3FP
dimensions width: 48,26
dimensions height: 39,93
dimensions depth: 7,96
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
colour: schwarz / black
controls: 8 Keys: Power, 7x Function
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 19,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 350 cd/m²
contrast: 1000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 9-36 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI (optional)
USB: 2 x USB 3.2 Gen.1
serial: 1 x RS-232
LAN: 2x RJ45 - 10/100/1000 Mbps
CPU Typ: Core i5
CPU Model: 1135G7
CPU 64bit: Ja
CPU speed: 2,4 GHz
CPU cores: 4
CPU socket: FCBGA1449
RAM size (MB): 4096
RAM max. size (MB): 32768
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 3200
Grafik Controller: Intel Iris Xe Graphics
safety: TPM 2.0
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating temperatur min.: -20°C
operating temperatur max.: 60°C
warranty: 24 Monate / 24 months
