W24L100-MRL1FP
Hardware marino
23.8" (3840 x 2160) 4K UHD Marine Display Protection class IP66 Front side protected Projected Capacitive Multi-Touch Screen (PCAP) / Anti-Reflection Protection Glass (Optional) Fanless cooling system 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount

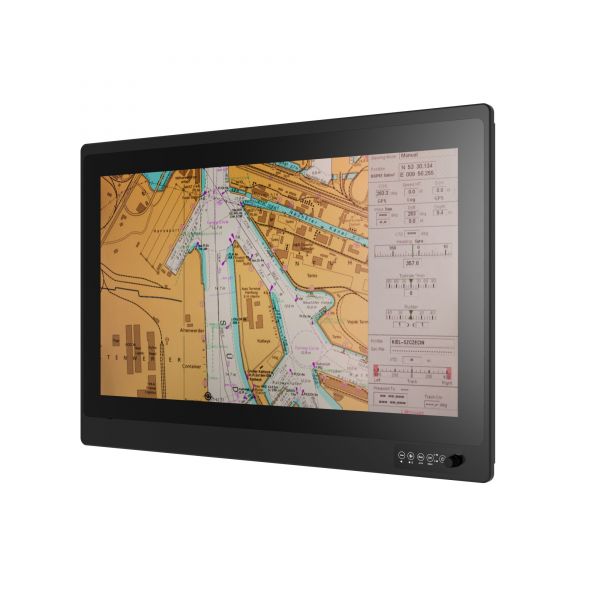

01-Marine-Display-W24L100-MRL1FP.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Display-W24L100-MRL1FP.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-Marine-Display-W24L100-MRL1FP.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
52400266
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 52400266 |
| Manufacturer: | WM |
| MatchcodeHersteller: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | W24L100-MRL1FP |
| mechanics: | Panel Mount |
| dimensions width: | 60,1 |
| dimensions height: | 41,5 |
| dimensions depth: | 7,38 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP66 |
| colour: | schwarz / black |
| VESA-Mounting Interface: | VESA 200 x 100 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| Display-diagonal (inch): | 23,8 |
| aspect ratio: | 16:9 |
| resolution: | 3840 x 2160 |
| brightness: | 540 cd/m² |
| contrast: | 1200:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 24 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| HDMI: | 1 x HDMI 1.4, 1 x HDMI 2.0 |
| DisplayPort: | 1 x DisplayPort |
| serial: | 1 x RS-232 |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
