W24IH3S-MRA1FP
Hardware marino

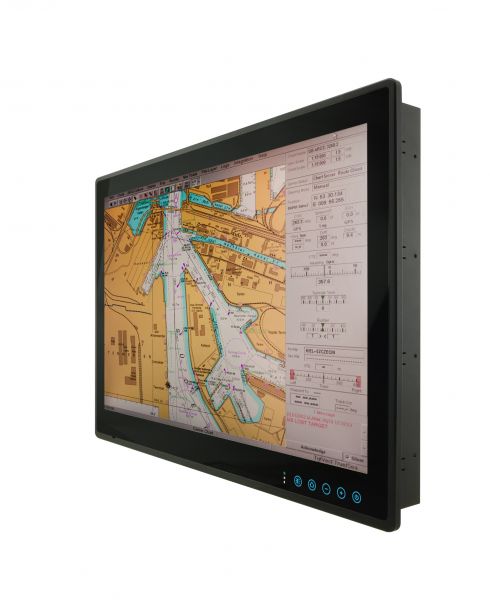

24” (1920 x 1080) PCAP ECDIS Marine Panel PC Intel Core i5-5350U Processor 1.8GHz (up to 2.9GHz) Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10 Protection class IP66 Front side protected Edge-to-edge narrow bezel design and fanless cooling system Optional Color calibrated for ECDIS compliance Capacitive touch keys for quick function access and display contro (Support ECDIS DAY, DUSK, and NIGHT mode) Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software Projected Capacitive Multi-Touch Screen (PCAP) / Anti-Reflection Protection Glass (Optional) / Anit-Glare film (Optional) VESA Mount/ Panel Mount
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
| Numero Ordine: | 23240069 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | W24IH3S-MRA1FP |
| mechanics: | Panel Mount |
| dimensions width: | 59,5 |
| dimensions height: | 38,5 |
| dimensions depth: | 6,38 |
| weight: | 10,3 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP66 |
| colour: | schwarz / black |
| controls: | 5 Keys: Power, 4x Function |
| VESA-Mounting Interface: | VESA 150 x 150 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 24,0 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 300 cd/m² |
| contrast: | 5000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 24 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| HDMI: | 1 x HDMI (optional) |
| USB: | 2 x USB 3.0, 1 x 2.0 |
| serial: | 1 x RS-232 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Core i5 |
| CPU Model: | 5350U |
| CPU 64bit: | Ja |
| CPU speed: | 1,8 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1168 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD-Grafik 6000 |
| SSD design: | mSATA |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I211-AT + I218-LM |
| Betriebssystem: | Optional |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
