R17L500-MRM1
Hardware marino
17" (1280 x 1024) Marine Display Protection class IP66 Front side protected, IP54 Back side protected Dimming knob control backlight brightness from nearly 0% to 100% User-friendly OSD control on the front marine display Enhanced shock and vibration resistance inclusive Resistive Touchscreen Option: Anti-Reflection Protection Glass 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable VESA Mount/ Panel Mount

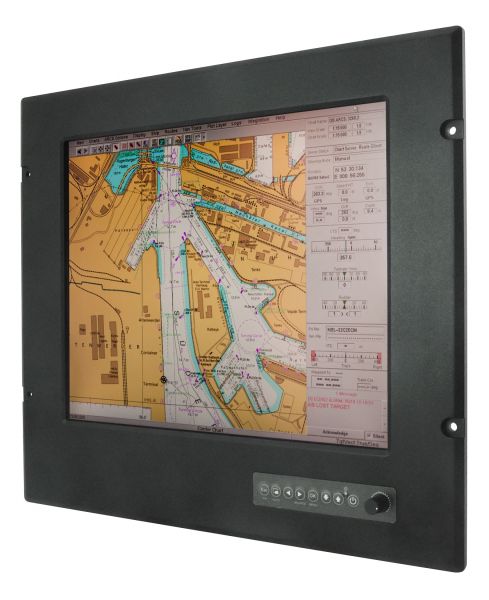

01-Marine-Display-R17L500-MRM1.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Marine-Display-R17L500-MRM1.jpg / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-Marine-Display-R17L500-MRM1.png / TL Produkt-Welten / Marine / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
51701239
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 51701239 |
| Manufacturer: | WM |
| MatchcodeHersteller: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | R17L500-MRM1 |
| mechanics: | Panel Mount |
| dimensions width: | 46,0 |
| dimensions height: | 41,0 |
| dimensions depth: | 7,72 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP66 |
| colour: | schwarz / black |
| controls: | 8 Keys: Power, 7x Function |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| Display-diagonal (inch): | 17,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 350 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| Video: | 1 x Composite, 1 x S-Video |
| serial: | 2 x RS232 |
| operating temperatur min.: | -15°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
