I330EAC-ITW
Hardware marino

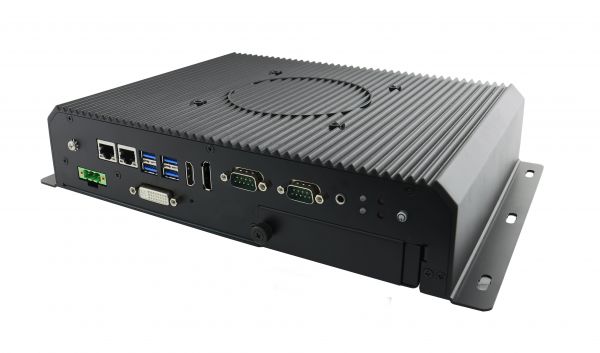

I330EAC-ITW Marine Computer Intel® Tiger Lake Core™ i5-1135G7 Meet the requirements of Industrial marine standards, including IEC60945 4th Edition and DNVGL-CG-0339 RAM 4G DDR4L (Up to 32G) Removable 2.5" SSD drive bay Multi Video Output: DVI/HDMI/Display Port 24V DC-in with Isolation (Approval by Certificate) 9 to 36V DC Input Acceptable Table mount

01-Industrial-Embedded-PC-I330EAC-ITW
01-Industrial-Embedded-PC-I330EAC-ITW
02-Industrial-Embedded-PC-I330EAC-ITW
02-Industrial-Embedded-PC-I330EAC-ITW
03-Industrial-Embedded-PC-I330EAC-ITW
03-Industrial-Embedded-PC-I330EAC-ITW

Numero Ordine: 15100544
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 15100544
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: EmbeddedLine
Manufacturer item number: I330EAC-ITW
mechanics: Embedded-PC
dimensions width: 31,64
dimensions height: 6,21
dimensions depth: 20,68
weight: 3,9
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: Optional / optional
cooling: lüfterlos / fanless
CPU Typ : Core i5
CPU Model : 1135G7
CPU 64bit : Ja
CPU speed: 2,4GHz
CPU cores: 4
CPU socket: FCBGA1449
RAM size (MB): 4096
RAM max. size (MB): 32768
RAM Number of benches: 2
RAM Typ : SO-DDR4
RAM speed: 2133
Grafik Controller: Intel Iris Xe Graphics
Ethernet Controller: Intel I211-AT + I219-LM
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Display: 1x DVI-I, 1x DP, 1x HDMI (optional)
USB : 4 x USB 3.0
LAN: 2x RJ45 - 10/100/1000 Mbps
Audio : 1x Audio combo 3,5mm
Seriell : 2 x RS-232/422/485
voltage input DC: 9-36 V/DC
power adapter: 100 - 240 V/AC, 4-pin, extern
operating-system support: Optional / optional
operating temperatur min.: -15°C
operating temperatur min.: 55°C
warranty: 24 Monate / 24 months
