EACIL20-MR
Hardware marino

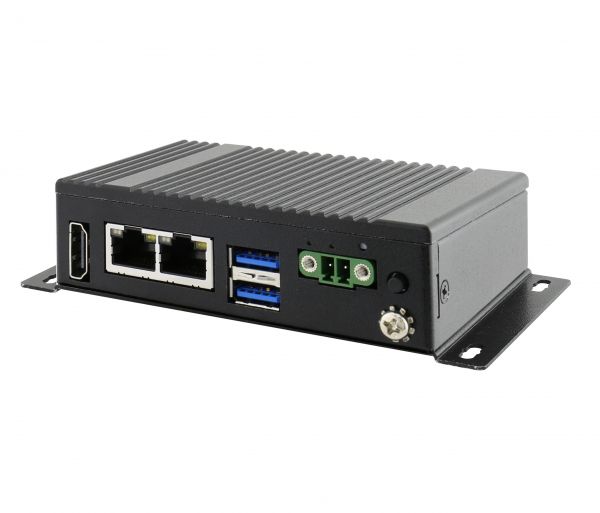

EACIL20-MR Marine Computer Intel Pentium N4200 1.1GHz (up to 2.5GHz) Protection class IP30 Fanless design 9V to 36V DC, 2-Pin Terminal Block Various mounting options: desk / wall / VESA / DIN-Rail
01-Industrial-Embedded-PC-EACIL20-MR
02-Industrial-Embedded-PC-EACIL20-MR
03-Industrial-Embedded-PC-EACIL20-MR
04-Industrial-Embedded-PC-EACIL20-MR
Numero Ordine:
15000605
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000605 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | EmbeddedLine |
| Manufacturer item number: | EACIL20-MR |
| mechanics: | Embedded-PC |
| dimensions width: | 10,0 |
| dimensions height: | 3,1 |
| dimensions depth: | 7,0 |
| weight: | 0,4 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP30 |
| protection device: | IP30 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | Optional / optional |
| cooling: | lüfterlos / fanless |
| chipset: | Intel System on chip |
| CPU Typ : | Pentium |
| CPU Model : | N4200 |
| CPU 64bit : | Ja |
| CPU speed: | 1,1GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1296 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ : | LPDDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 505 |
| Mini-PCIe-slot: | 1 |
| SSD design: | eMMC |
| SSD max. number: | 1 |
| SSD capacity (GB): | 32 |
| Display: | 1x HDMI 1.4 (optional) |
| USB : | 2 x USB 3.2 Gen1x1 (Type-A) |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| voltage input DC: | 9-36 V/DC |
| power adapter: | 100 - 240 V/AC, 4-pin, extern |
| WLAN: | Optional / optional |
| operating-system support: | Optional / optional |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 55°C |
| warranty: | 24 Monate / 24 months |
