FM12E-V
Computer veicolare

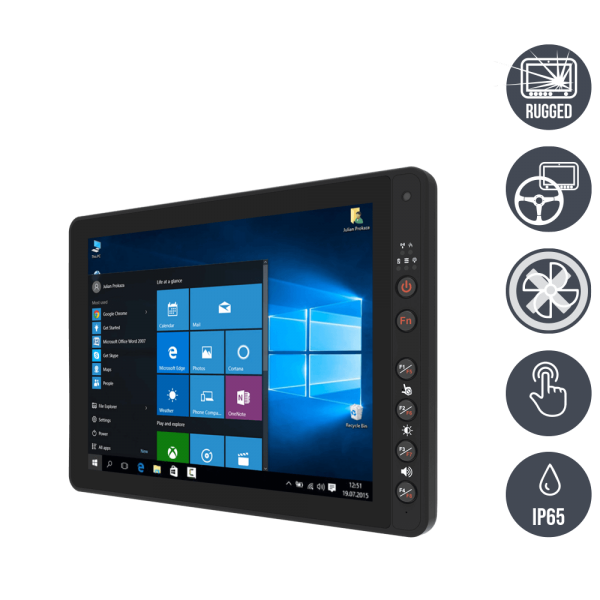

Tablet PC ready for vehicle and forklift installation Ruggedized Tablet in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810H) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability
01-Fahrzeug-montierbarer-PC-FM12E-V.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Fahrzeug-montierbarer-PC-FM12E-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Fahrzeug-montierbarer-PC-FM12E-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Industrial-Vehicle-Computer-Docking-Station-FM12E-V / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Numero Ordine:
23120441
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23120441 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Vehicle Mounted Computer |
| Manufacturer item number: | FM12E-V |
| mechanics: | Vehicle Mount Computer |
| dimensions width: | 30,66 |
| dimensions height: | 22,5 |
| dimensions depth: | 5,66 |
| weight: | 2,4 |
| Material housing: | Aluminium / aluminium |
| protection device: | IP65 |
| colour: | Schwarz / black |
| VESA-Mounting Interface: | VESA 75 x 75 / 100 x 100 mm |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 12,1 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 400 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/Stift/Handschuh / finger/pen/glov |
| CPU Typ: | Atom |
| CPU Model: | x6425E |
| CPU speed: | 2,0 GHz |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| RAM max. Größe (MB: | 8192 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 3200 |
| SSD design: | M.2 |
| SSD capacity: | 128 |
| SSD number: | 1 |
| safety: | TPM 2.0 |
| WLAN: | Ja / yes |
| Bluetooth: | Ja / yes |
| WWAN: | Ja / yes |
| Ethernet_connections: | 1x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| USB: | 1x USB Type-C, 1x USB 2.0 Type-A |
| serial: | 2x RS-232 |
| LAN: | 1x RJ45 - 10/100 Mbps |
| Card Slot: | 1x Micro SD Slot, 1x Dual-Nano SIM Slot |
| Power: | 1x 10-60 V/DC, DC Plug |
| controls: | 6 Keys: Power, 5x Function |
| operating system: | Windows 10 IoT Enterprise |
| operating temperatur min.: | -30°C |
| operating temperatur max.: | 60°C |
| Shock: | MIL-STD-810H Method 516.8 Procedure I |
| Vibration: | MIL-STD-810H Method 514.8 Procedure I |
| voltage input DC: | 10 V-60 V |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| battery: | Optional / optional |
