EL1083-EC
PC embedded, PC industriale

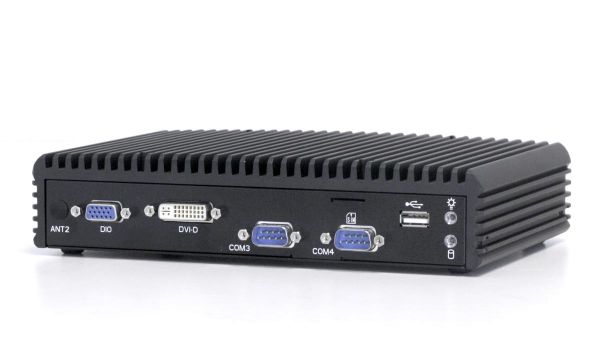

Booksize Embedded PC for professional use Industrial computer in sturdy aluminium housing Designed for industrial applications in continuous operation Easy installation with mounting bars or DIN Rail kit Long-term availability
01-Front-EL1083EC / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Rear-Interfaces-EL1083EC / TL Produkt-Welten / Industrie-PC / Embedded-PC
Purtroppo questo prodotto è attualmente esaurito!
Numero Ordine:
15000496
prezzo lordo: € 648,55
€ 545,00 *
prezzo lordo: € 648,55
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000496 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | SE-8124 |
| mechanics: | Embedded-PC |
| dimensions width: | 217,5 |
| dimensions height: | 4,5 |
| dimensions depth: | 14,8 |
| weight: | 2,0 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| wall mounting: | Optional / optional |
| cooling: | lüfterlos / fanless |
| chipset: | Intel System on chip |
| CPU Typ : | Celeron |
| CPU Model : | J1900 |
| CPU 64bit : | Ja |
| CPU speed: | 2000 |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ : | SO-DDR3L |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| Ethernet Controller: | Intel WG I210IT |
| Audio Controller: | Realtek ALC888S HD Codec |
| Mini-PCIe-slot: | 1 |
| SSD design: | 2.5" |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| RAID-System : | Nein / no |
| Display: | 1x DVI-D |
| USB : | 1 x USB 2.0 |
| Seriell : | 2 x RS-232 |
| Digitale I/O : | 1 x 4in / 4out |
| Display : | 1x DVI-I |
| USB : | 1 x USB 3.0, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Mic-In |
| serial: | 2 x RS-232/422/485 |
| controls: | Power On/Off |
| voltage input DC: | 9-36 V/DC |
| power adapter: | Optional externes Netzteil 100 - 240 V/A |
| WLAN: | Optional / optional |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
