EACIL20
PC embedded, PC industriale

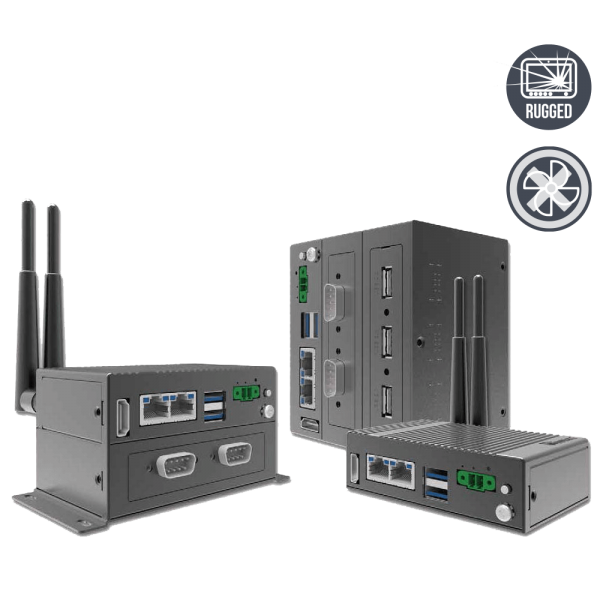

Embedded Industrial PC for Smart Factory & Industry 4.0 Mini Industrial computer in sturdy steel sheet housing Modular layout in 1 / 2 layers Expansion modules for interfaces and external antennas Shock and vibration resistant Designed for industrial applications in continuous operation Versatile mounting options: table and wall mount with integrated mounting bars, with DIN rail adapter or with VESA mounting plate Long-term availability
01-Industrial-Embedded-PC-IoT-Gateway-EACIL20.png / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Industrial-IoT-Gateway-Applications-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-Industrial-IoT-Gateway-Mounting-Din-Rail-VESA-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Industrial-Embedded-PC-IoT-Gateway-Expansions-EACIL20 / TL Produkt-Welten / Industrie-PC / Embedded-PC
05-Industrial-Embedded-PC-IoT-Interfaces-EACIL20-2 / TL Produkt-Welten / Industrie-PC / Embedded-PC
06-Industrial-Embedded-PC-IoT-Interfaces-EACIL20-1.jpg / TL Produkt-Welten / Industrie-PC / Embedded-PC
Purtroppo questo prodotto è attualmente esaurito!
Numero Ordine:
15000442
prezzo lordo: € 470,05
€ 395,00 *
prezzo lordo: € 470,05
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000442 |
| Manufacturer: | WM |
| Matchcode manufacturer: | Ja |
| Manufacturer: | Winmate |
| series name: | EmbeddedLine |
| Manufacturer item number: | EACIL20 |
| mechanics: | Embedded-PC |
| dimensions width: | 10 |
| dimensions height: | 7,0 |
| dimensions depth: | 3,1 |
| weight: | 0,4 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP30 |
| protection device: | IP30 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | Optional / optional |
| wall mounting: | Ja / yes |
| cooling: | lüfterlos / fanless |
| DIN-Rail: | Optional / optional |
| chipset: | Intel System on chip |
| CPU Typ : | Celeron |
| CPU Model : | N3350 |
| CPU 64bit : | Ja |
| CPU speed: | 1100 |
| CPU cores: | 2 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ : | LPDDR3 |
| RAM speed: | 1866 |
| Grafik Controller: | Intel HD Graphics 500 |
| Ethernet Controller: | Intel I210-AT |
| Mini-PCIe-slot: | 1 |
| SSD design: | eMMC |
| SSD max. number: | 1 |
| SSD capacity (GB): | 32 |
| Display : | 1x HDMI |
| USB : | 2 x USB 3.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| voltage input DC: | 9-36 V/DC |
| power adapter: | Optional externes Netzteil 100 - 240 V/A |
| WLAN: | Optional / optional |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 55°C |
| warranty: | 24 Monate / 24 months |
