W24IE3S-65A2
Panel-PC

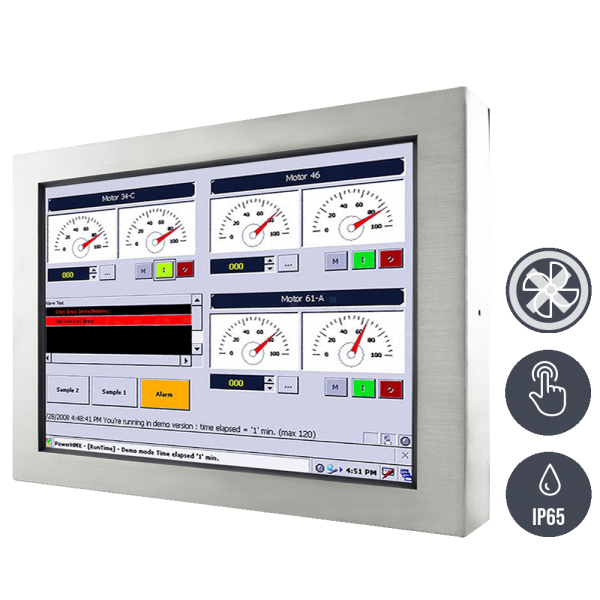

Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability

01-Industrie-Panel-PC-IP65-Edelstahl-W24IE3S-65A2-mT.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
01-Industrie-Panel-PC-IP65-Edelstahl-W24IE3S-65A2-mT.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine: 23240079
prezzo lordo: € 2.671,55
€ 2.245,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Komplett aus Edelstahl
  • Rundum IP65 geschützt inkl. Schnittstellen
  • Resistiver Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23240079
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: ES-Serie
Manufacturer item number: W24IE3S-65A2
mechanics: Chassis Edelstahl / stainless steel (VES
dimensions width: 60,0
dimensions height: 38,0
dimensions depth: 6,09
weight: 12,5
Material housing: Edelstahl / stainless steel
Material Front : Edelstahl / stainless steel
protection front: IP65
protection device: IP65
colour: Edelstahl gebürstet / brushed stainless
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 200 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 23,8
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 250 cd/m²
contrast: 3000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC (M12 type)
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
USB: 2 x USB 2.0 (M12 type)
serial: 1 x RS-232 (M12 type)
LAN: 1x RJ45 - 10/100/1000 Mbps (M12 type)
CPU Typ: Celeron
CPU Model: N6211
CPU 64bit: Ja
CPU speed: 1,2 GHz
CPU cores: 2
CPU socket: FCBGA1493
RAM size (MB): 4096
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 3200
Grafik Controller: Intel UHD Graphics for 10th Generation
safety: TPM 2.0
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
WLAN : Ja / yes
Bluetooth : Ja / yes
operating-system language version: deutsch / english / italian
operating temperatur min.: 0°C
operating temperatur max.: 45°C
warranty: 24 Monate / 24 months
