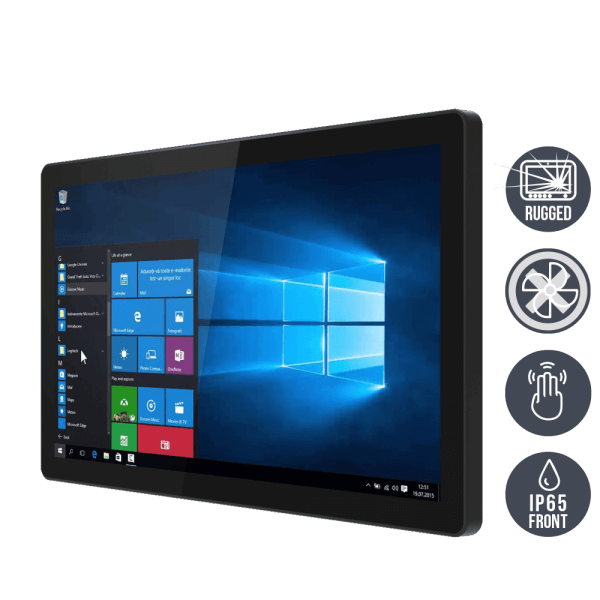

W22IP3S-GCA3
Multitouch-Screen, Projected-Capacitive (PCAP), Panel-PC
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability
01-Front-W22IP3S-GCA3.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23221059
prezzo lordo: € 1.184,05
€ 995,00 *
prezzo lordo: € 1.184,05
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 23221059 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | GC-Serie |
| Manufacturer item number: | W22IP3S-GCA3 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 53,0 |
| dimensions height: | 32,17 |
| dimensions depth: | 5,49 |
| weight: | 5,9 |
| Material housing: | Metall / metal |
| Material Front : | Kunststoff / plastic |
| protection front: | IP65 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 21,5 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| USB: | 2 x USB 3.0 |
| serial: | 1 x RS-232/422/485 |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Pentium |
| CPU Model: | N4200 |
| CPU 64bit: | Ja |
| CPU speed: | 1,10 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1296 |
| RAM size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics 505 |
| safety: | TPM 2.0 |
| CPU class: | Pentium |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | 2x Intel I210-AT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
