W22IE3S-65A3

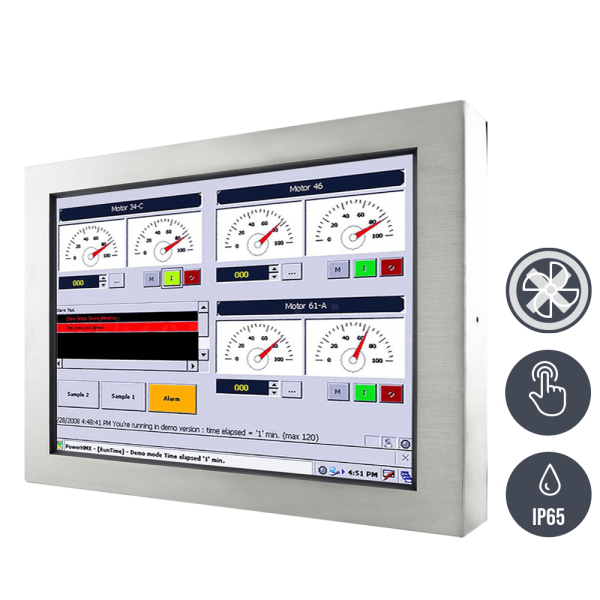

Panel-PC
Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability
prezzo lordo: € 2.136,05
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
Numero Ordine: | 23221159 |
Manufacturer: | WM |
Matchcode manufacturer: | nein |
Manufacturer: | Winmate |
series name: | ES-Serie |
Manufacturer item number: | W22IE3S-65A3 |
mechanics: | Chassis Edelstahl / stainless steel (VES |
dimensions width: | 55,0 |
dimensions height: | 34,0 |
dimensions depth: | 5,86 |
weight: | 10,3 |
Material housing: | Edelstahl / stainless steel |
Material Front : | Edelstahl / stainless steel |
protection front: | IP65 |
protection device: | IP65 |
colour: | Edelstahl gebürstet / brushed stainless |
controls: | 2 Keys: Power, Reset |
VESA-Mounting Interface: | VESA 200 x 100 mm |
mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
cooling: | lüfterlos / fanless |
Display-diagonal (inch): | 21,5 |
aspect ratio: | 16:9 |
resolution: | 1920 x 1080 |
brightness: | 250 cd/m² |
contrast: | 3000:1 |
Display-Technologie: | LCD, LED Backlight |
Touch-Screen or glass: | Resistive Touch |
Touch Interface: | USB |
Manufacturer controller: | Premier |
voltage input DC: | 12 V/DC (M12 type) |
external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
USB: | 2 x USB 2.0 (M12 type) |
serial: | 1 x RS-232 (M12 type) |
LAN: | 1x RJ45 - 10/100/1000 Mbps (M12 type) |
chipset: | Intel System on chip |
CPU Typ: | Celeron |
CPU Model: | N6211 |
CPU 64bit: | Ja |
CPU speed: | 1,2 GHz |
CPU cores: | 2 |
CPU socket: | FCBGA1493 |
RAM size (MB): | 4096 |
RAM Number of benches: | 1 |
RAM Typ: | SO-DDR4 |
RAM speed: | 3200 |
Grafik Controller: | Intel UHD Graphics for 10th Generation |
safety: | TPM 2.0 |
SSD design: | M.2 |
SSD max. number: | 1 |
SSD capacity (GB): | 128 |
Ethernet connections: | 1 x RJ-45 |
Ethernet data transfer: | 1 x Gigabit-LAN |
WLAN : | Ja / yes |
Bluetooth : | Ja / yes |
operating-system language version: | deutsch / english / italian |
operating temperatur min.: | 0°C |
operating temperatur max.: | 45°C |
warranty: | 24 Monate / 24 months |
