S17L500-OFM1_PMA
monitor industriale, Touch-Screen funzionamento con un dito

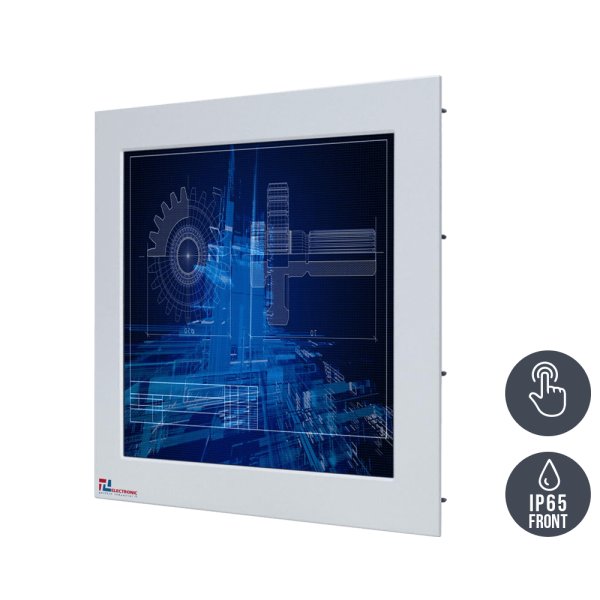

Industrial LCD for professional use Industrial monitor in sturdy sheet steel design Robust aluminum front panel (IP65-protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability. 17” (4:3) active matrix TFT built-in LCD with aluminum front frame panel mount, “Type PMA”, color RAL7035, with fixing bolts and rear sealing lip. Protection class: front IP65 Version: covered at the rear to prevent accidental contact (cage chassis) LCD dimensions: 410 x 330 x 58 mm, front panel dimensions: 483 x 399 x 5 mm, Resolution: 1280 x 1024 pixels Video input: 15 pin HD sub socket (VGA) + DVI + HDMI Supply voltage: 12 V/DC, incl. external power supply unit with 100-240 V/AC Temperature range: 0-50° C (operation), -10-60° C (storage) incl. resistive PREMIER touchscreen, USB Origin: Taiwan
prezzo lordo: € 1.017,45
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
| Numero Ordine: | 51701210 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | WM-Serie |
| Manufacturer item number: | S17L500-OFM1 |
| mechanics: | Panel Mount |
| dimensions width: | 48,3 |
| dimensions height: | 39,9 |
| dimensions depth: | 6,3 |
| weight: | 4,8 |
| Material housing: | Metallgehäuse / Metal housing |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 5 Keys: -, +, Power, Esc, Enter |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| Display-diagonal (inch): | 17,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 350 cd/m² |
| contrast: | 1000:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| HDMI: | 1 x HDMI |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
