M101P - BARCODE/RFID
Tablet industriali rugged, Mobile Computing

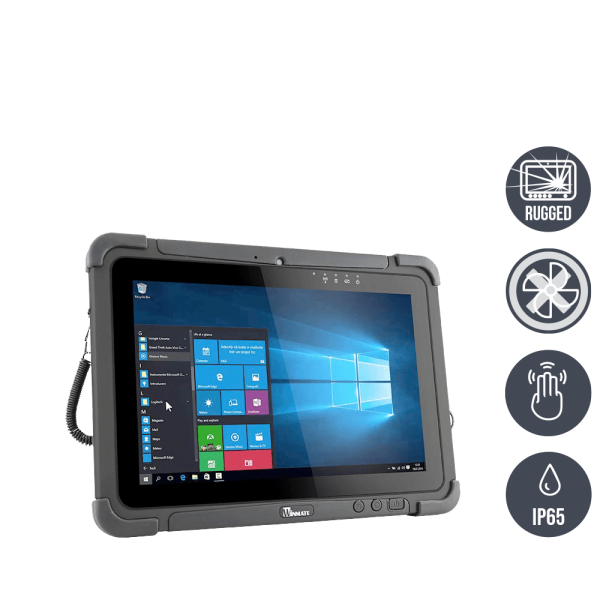

Tablet PC for professional use Ruggedized Tablet in sturdy aluminium housing Protection class IP65 all around incl. Interfaces Shock, vibration and drop protected (MIL-STD-810G) Multi-touch (PCAP) with Glove / Rain / Stylus modes Wide range of options and accessories for data capture, communication, docking, mounting, power, peripherals and transportation The ideal partner for warehouse, logistics, automotive, outdoor, smart factory, field service etc. Long-term availability
01-Rugged-Industrie-Tablet-M101P.png / TL Produkt-Welten / Mobile Computing / Rugged Industrial Tablets
Numero Ordine:
25100057
prezzo lordo: € 2.124,15
€ 1.785,00 *
prezzo lordo: € 2.124,15
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 25100057 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Industrial Tablet PC |
| Manufacturer item number: | M101P |
| mechanics: | Rugged Tablet PC |
| dimensions width: | 27,19 |
| dimensions height: | 19,73 |
| dimensions depth: | 1,95 |
| weight: | 1,2 |
| Material housing: | Aluminium - Magnesium |
| protection device: | IP65 |
| colour: | Schwarz / black |
| VESA-Mounting Interface: | Optional / optional |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:10 |
| resolution: | 1920 x 1200 |
| brightness: | 800 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/Stift/Handschuh / finger/pen/glov |
| CPU Typ: | Pentium |
| CPU Model: | N4200 |
| CPU speed: | 1,1 GHz |
| CPU cores: | 4 |
| RAM size (MB): | 8192 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 1600 |
| SSD design: | M.2 |
| SSD capacity: | 256 |
| SSD number: | 1 |
| safety: | TPM 2.0 und Kensington Lock |
| WLAN: | Ja / yes |
| WLAN-Standard: | IEEE 802.11 a/b/g/n/ac |
| Bluetooth: | Ja / yes |
| WWAN: | Ja / yes |
| WWAN-Standard: | 4G/LTE/3G |
| Ethernet_connections: | Nein / no |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| Camera rear: | Ja / yes |
| Camera rear resolution: | 8MP |
| Barcode: | 1D/2D Barcode reader |
| RFID: | HF RFID reader |
| Video: | 1x Mirco HDMI |
| USB: | 1x USB 3.0 (Type A), 1x USB 3.0 (Type C) |
| Card Slot: | 1x Micro SD Slot |
| Audio: | 1x Audio Combo Conn.(Mic in/Line out) |
| Power: | 1x 12-19 V/DC, DC plug |
| Docking connector: | 1x 19-pin Docking Connector |
| controls: | 6 Keys: Power, Home, 2x Volume, 2x Funct |
| operating system: | Windows 10 IoT Enterprise |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| Shock: | MIL-STD-810G Method 516.6 Procedure I |
| Vibration: | MIL-STD-810G Method 514.6 Procedure I |
| Drop: | MIL-STD-810G Method 516.6, 4 ft |
| voltage input DC: | 12-19 V/DC |
| voltage input AC: | 100 - 240 V/AC |
| external power supply: | 19 V/DC, 100 - 240 V/AC, DC plug |
| battery: | 7.7V, 5900 mAh Li-Polymer Battery (2S1P) |
| battery Hot-Swap: | Ja / yes |
Weiterführende Links zu "M101P - BARCODE/RFID"
Verfügbare Downloads:
- CE Konformitätserklärung DoC M101P-RED_201008
- Drawing Tablet-PC M101P 201008
- Zubehör Accessories M101 Industrial Tablet PC - Charging
- Zubehör Accessories M101 Industrial Tablet-PC - Data Capture
- Zubehör Accessories M101 Industrial Tablet-PC - Docking Stations
- Zubehör Accessories M101 Industrial Tablet-PC - Hand + Shoulder Strap
- Zubehör Accessories M101 Industrial Tablet-PC - Mobile Printers
- Zubehör Accessories M101 Industrial Tablet-PC
