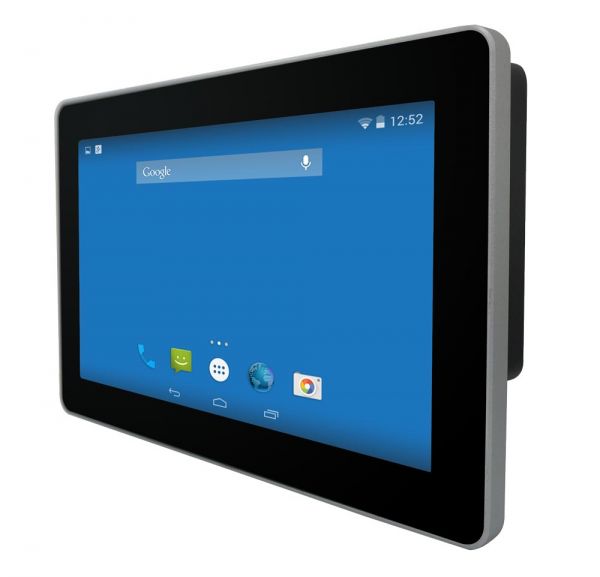

W10FA3S-PCH2-PoE
Panel-PC
HMI Panel PC with multitouch for professional use Flat PCAP glass front without dirt-collecting edges Programmable LED signal bar Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface
01-HMI-Panel-PC-Multi-Touch-W10FA3S-PCH2 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23100454
prezzo lordo: € 470,05
€ 395,00 *
prezzo lordo: € 470,05
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 23100454 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | S-Series |
| Manufacturer item number: | W10FA3S-PCH2-PoE |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 26,46 |
| dimensions height: | 17,33 |
| dimensions depth: | 3,57 |
| weight: | 1,35 |
| Material housing: | Stahlblech / steel sheet |
| protection front: | IP65 |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:9 |
| resolution: | 1280 x 800 |
| brightness: | 350 cd/m² |
| contrast: | 800:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| HDMI: | 1 x Micro HDMI (optional) |
| serial: | 1 x RS-232 |
| Audio: | 1 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | A9 |
| CPU Model: | Cortex A9 |
| CPU speed: | 1,0 GHz |
| CPU cores: | 2 |
| RAM size (MB): | 1024 |
| SSD design: | eMMC |
| SSD capacity (GB): | 16 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Betriebssystem: | Android 6.0 |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 6 Monate / 6 months |
