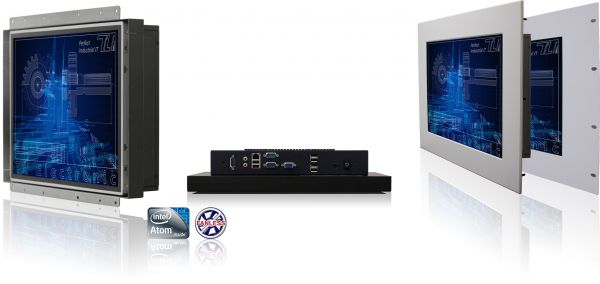

MT 19-880
Panel-PC
19,0 inch Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts
01-Chassis-Industrie-Panel-PC-slimline-mt-19-880-of / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine:
24190030
prezzo lordo: € 708,05
€ 595,00 *
prezzo lordo: € 708,05
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 24190030 |
| Manufacturer: | MT |
| Matchcode manufacturer: | nein |
| series name: | SlimLine-Serie |
| Manufacturer item number: | MT 19-880 |
| mechanics: | Panel Mount |
| dimensions width: | 48,3 |
| dimensions height: | 39,9 |
| dimensions depth: | 5,0 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 300 cd/m² |
| contrast: | 800:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| voltage input DC: | 19 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| USB: | 4 x USB 2.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | 2 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| chipset: | Intel 82801HM |
| CPU Typ: | Atom |
| CPU Model: | D410 |
| CPU 64bit: | Ja |
| CPU speed: | 1,66 GHz |
| CPU cores: | 1 |
| CPU socket: | FCBGA559 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | DDR2 |
| Grafik Controller: | on board |
| Audio Controller: | Realtek ALC655 |
| CPU class: | Atom / Celeron |
| SSD design: | 2.5" |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Realtek RTL8111/8168 |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 12 Monate / 12 months |
