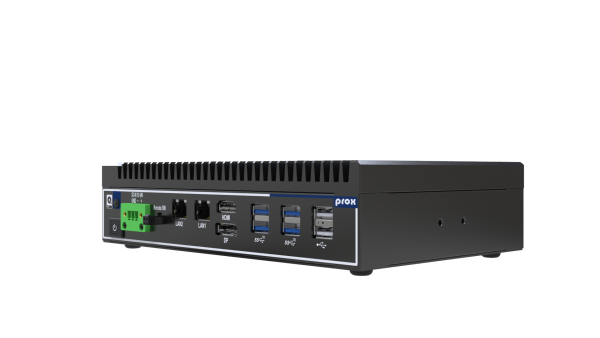

SE-N108
PC embedded
Booksize Embedded PC for professional use
Industrial computer in sturdy aluminium housing
Designed for industrial applications in continuous
operation Easy installation with mounting bars
or DIN Rail kit Long-term availability
Numero Ordine:
15000651
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15000651 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | SE-N108 |
| mechanics: | Embedded-PC |
| dimensions width: | 21,5 |
| dimensions height: | 5,0 |
| dimensions depth: | 14,26 |
| weight: | 1,65 |
| Material housing: | Aluminium - Magnesium |
| protection device: | IP20 |
| colour: | schwarz / black |
| controls: | 1 Key: Power On/Off |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| wall mounting: | Ja / yes |
| DIN-Rail: | Ja / yes |
| cooling: | lüfterlos / fanless |
| CPU Typ : | Core i5 |
| CPU Model : | 1245UE |
| CPU 64bit : | Ja |
| CPU speed: | 3,3 GHz |
| CPU cores: | 10 |
| CPU socket: | FCBGA1744 |
| CPU alternative option 1: | Core i3- 1215UE |
| CPU alternative option 2: | Core i7-1245UE |
| CPU alternative option 3: | Intel Celeron 7305E |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 1 |
| RAM Typ : | SO-DDR5 |
| RAM speed: | 4800 |
| safety: | TPM 2.0 |
| HDD design: | 2.5" |
| HDD max. number: | 1 |
| HDD connection: | SATA 3.0 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| USB : | 2 x USB 2.0 (optional) |
| Audio : | Line-Out, Mic-In |
| Seriell : | 2 x RS-232/422/485 |
| SIM Card Slot : | Ja / yes |
| Display : | 1 x DisplayPort, 1 x HDMI |
| USB : | 4 x USB 3.2 Gen2, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| controls: | Power On/Off, Kontroll-LEDs |
| voltage input DC: | 12-24 V/DC |
| voltage input AC: | 100 - 240 V/AC |
| operating temperatur min.: | -20°C |
| operating temperatur min.: | 70°C |
| warranty: | 24 Monate / 24 months |
