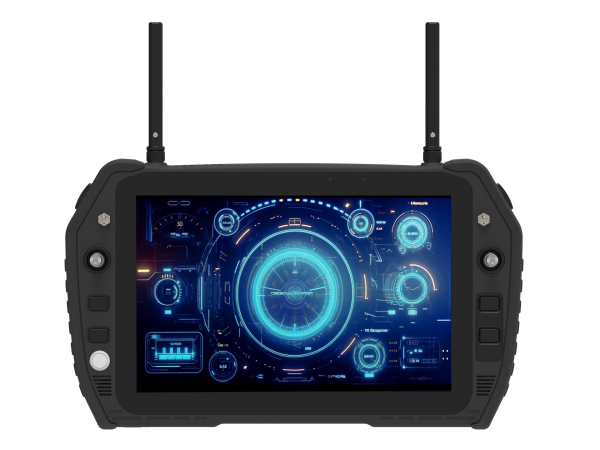

G101AD-A
Controllore di robotica
10.1" Rugged Ground Control Station Intel Core i5-1235U All-weather, dust and waterproof IP65 design Shock, vibration and drop resistance (MIL-STD-810H) Low-latency video SW decoder for high-resolution real-time video playback Supports WIFI, BT and optional 4G/5G Embedded TPM IC and optional OPAL SSD
04-Rugged-Robotic-Controller-G101AD-A.png / TL Produkt-Welten / Rugged Robotic Controller / Robotics Controller
02-Rugged-Robotic-Controller-G101AD-A.png / TL Produkt-Welten / Rugged Robotic Controller / Robotics Controller
05-Rugged-Robotic-Controller-G101AD-A.png / TL Produkt-Welten / Rugged Robotic Controller / Robotics Controller
Numero Ordine:
25100096
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 25100096 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Robotic Controller |
| Manufacturer item number: | G101AD-A |
| mechanics: | Rugged Robotic Controller |
| dimensions width: | 31,78 |
| dimensions height: | 18,89 |
| dimensions depth: | 3,58 |
| protection device: | IP65 |
| colour: | Schwarz / black |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:10 |
| resolution: | 1920 x 1200 |
| brightness: | 800 cd/m² |
| contrast: | 800:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Projected Capactive / Multi-Touch |
| usability: | Finger/ Handschuh/ finger/ glove |
| CPU Typ: | Core i5 |
| CPU Model: | 1235U |
| CPU speed: | 3,3 GHz |
| CPU cores: | 10 |
| RAM size (MB): | 8192 |
| RAM max. Größe (MB: | 32768 |
| RAM Typ: | SDRAM-DDR5 |
| SSD capacity: | 256 |
| WLAN: | Ja / yes |
| Bluetooth: | Ja / yes |
| WWAN: | Optional / optional |
| Video: | 2x Mirco HDMI |
| USB: | 1x USB 3.0 (Type A), 1x USB 3.2 (Type C) |
| LAN: | 1x M8 LAN (10/100 Mbps, Max 250 Mbps) |
| Audio: | 2x Speaker |
| operating temperatur min.: | -20°C |
| operating temperatur max.: | 60°C |
| Shock: | MIL-STD-810H Method 516.8 Procedure I |
| Vibration: | MIL-STD-810H Method 514.8 Procedure I |
| battery: | 11.1V typ. 6400 mAh Lilon Battery (3S2P) |
