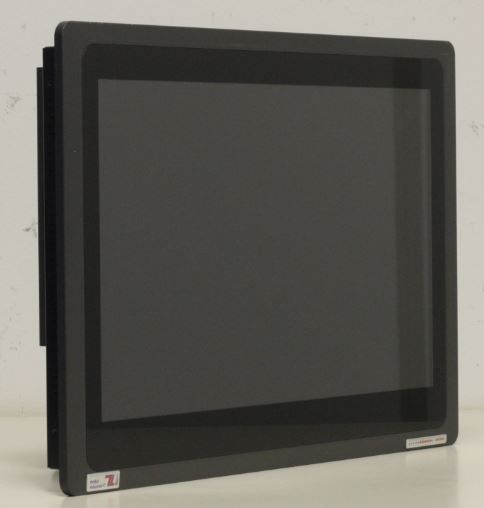

PT 18W-1082-PMA-MTU
Panel-PC
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation
PT 18W-1082-PMA-MTU.JPG / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
26180000
prezzo lordo: € 1.255,45
€ 1.055,00 *
prezzo lordo: € 1.255,45
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 26180000 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| mechanics: | Panel Mount |
| dimensions width: | 38,5 |
| dimensions height: | 31,8 |
| dimensions depth: | 11,5 |
| weight: | 8,8 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 18,5 |
| aspect ratio: | 16:9 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| USB: | 4 x USB 3.0 |
| serial: | 3 x RS-232, 1 x RS232/422/485 |
| Audio: | Mic-In, Line-Out |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | Core i3 |
| CPU Model: | 3120ME |
| CPU 64bit: | Ja |
| CPU speed: | 2,4 GHz |
| CPU cores: | 2 |
| RAM size (MB): | 4096 |
| RAM Typ: | SO-DDR3L |
| HDD design: | 2.5 |
| HDD connection: | SATA |
| HDD capacity (GB): | 500 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 6 Monate / 6 months |
