EL1191-AM
PC embedded

Booksize Embedded-PC für den professionellen Einsatz
Industriecomputer in robustem Aluminium-Gehäuse
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Einfache Installation mit Montageschienen oder auf Hutschiene / DIN Rail
Langzeitverfügbarkeit

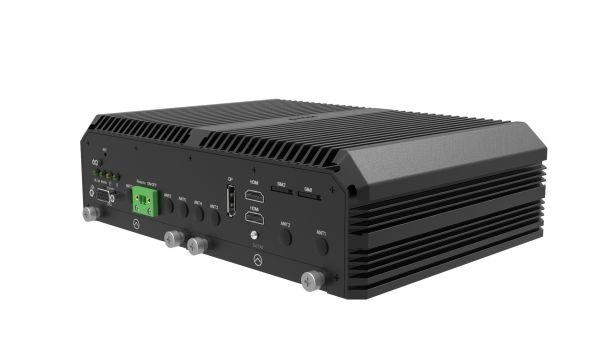

01-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
01-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-front-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-front-top-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
03-front-top-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-rear-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-rear-EL1191-AM / TL Produkt-Welten / Industrie-PC / Embedded-PC
Numero Ordine: 15000584
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • EmbeddedLine Kompakt Industrie PC
  • werkzeugloser HDD Zugang
  • Temperaturbereich -40°C - +70°C
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 15000584
Manufacturer: PT
Matchcode manufacturer: nein
Manufacturer: Protech
series name: EmbeddedLine
Manufacturer item number: IV-Z318
mechanics: Embedded-PC
dimensions width: 25,95
dimensions height: 7,2
dimensions depth: 18,48
weight: 3,2
Material housing: Aluminium / aluminium
Material Front : Aluminium / aluminum
protection front: IP20
protection device: IP20
colour: schwarz / black
VESA-Mounting Interface: VESA 75 x 75 mm
wall mounting: Ja / yes
cooling: lüfterlos / fanless
DIN-Rail: Optional / optional
chipset: Intel System on chip
CPU Typ : Core i5
CPU Model : 1145GRE
CPU 64bit : Ja
CPU speed: 1,50 GHz
CPU cores: 4
CPU socket: FCBGA1449
CPU alternative option 1: Core i3-1115GRE
CPU alternative option 2: Core i7-1185GRE
RAM size (MB): 4096
RAM max. size (MB): 32768
RAM Number of benches: 2
RAM Typ : SO-DDR4
RAM speed: 3200
Grafik Controller: Intel Iris Xe Graphics
safety: TPM 2.0
connections SATA: 2
Mini-PCIe-slot: 2
HDD design: 2.5"
HDD max. number: 2
HDD connection: SATA
MiniPCIe Slot SSD : 3
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 120
RAID-System : Ja / yes
SIM Card Slot : Ja / yes
Display : 2x DisplayPort, 1x HDMI
USB : 2x USB 3.2, 2 x USB 2.0
LAN : 4x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In
serial: 2 x RS-232, 2 x RS232/422/485
Digitale I/O : 1 x 4in / 4out
controls: Power On/Off, Reset
voltage input DC: 9-48 V/DC
operating-system support: Windows 10 IoT / Ubuntu 20.14
operating temperatur min.: -40°C
operating temperatur min.: 70°C
warranty: 24 Monate / 24 months
