WM 17-IB70-CH-PRS
no Touch-Screen

Chassis Panel PC for professional use Industrial Panel PC in sturdy steel sheet housing Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

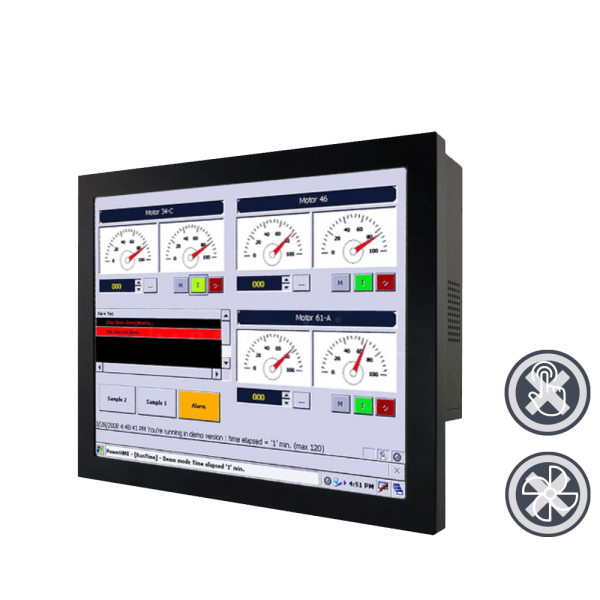

01-Chassis-Industrie-Panel-PC-R19IB7T-CHM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
01-Chassis-Industrie-Panel-PC-R19IB7T-CHM1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine: 23191575
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • Schutzglas / protective glass
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23191575
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: WM-Serie
Manufacturer item number: R19IB7T-CHM1
mechanics: Chassis (VESA-Mounting)
dimensions width: 43,2
dimensions height: 30,3
dimensions depth: 7,9
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP54
protection device: IP20
colour: RAL 9004 / signal black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount
cooling: lüfterlos / fanless
Display-diagonal (inch): 19
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 250 cd/m²
contrast: 1000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Schutzglas / protective glass
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 56 Watt
VGA: 1 x 15-pin D-sub
USB: 1 x USB 3.0, 3 x USB 2.0
serial: 2 x RS-232, 1 x RS232/422/485
Audio: Line-Out, Line-In, Mic in
LAN: 2x RJ45 - 10/100/1000 Mbps
PS/2: 2x Mini-DIN
Mainboard form factor: Mini-ITX
chipset: Intel System on chip
CPU Typ: Celeron Bay Trail-M
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,8 GHz
CPU cores: 4
CPU socket: CPU Onboard
RAM size (MB): 4096
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: SO-DDR3
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
Audio Controller: Realtek ALC886 HD Codec
safety: TPM 1.2
connections SATA: 1
CPU class: Atom / Celeron
SSD design: 2.5"
SSD capacity (GB): 128
RAID-System: Nein / no
CD/DVD-Writer : Nein / no
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I210-AT
MiniPCIe Slot WLAN/WWAN : 1
camera: Nein / no
Barcode Scanner: Nein / no
RFID Reader : Nein / no
Betriebssystem: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 7 / 8.1 / 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
