W10MG3S-PCH2LB-PoE
Multitouch-Screen, Projected-Capacitive (PCAP)
HMI Panel PC with multitouch for professional use Flat PCAP glass front without dirt-collecting edges Programmable LED signal bar Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

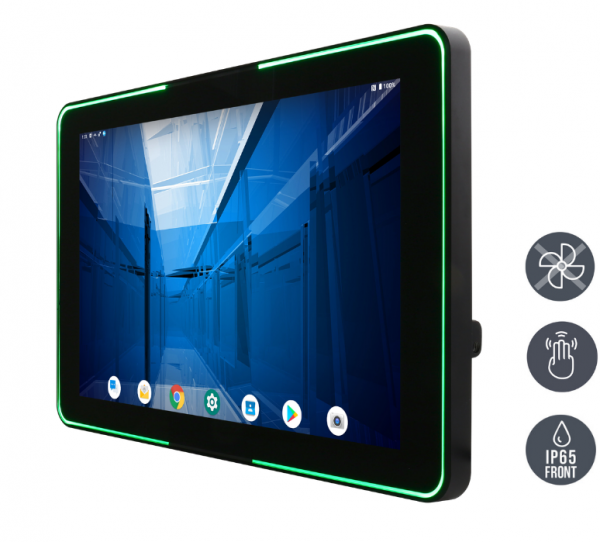

01-Chassis-Industrie-Panel-PC-W10MG3S-PCH2LB-POE-v1.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Chassis-Industrie-Panel-PC-W10MG3S-PCH2LB-POE.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
03-Chassis-Industrie-Panel-PC-W10MG3S-PCH2LB-POE.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23100669
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23100669 |
| Manufacturer: | WM |
| Manufacturer: | Winmate |
| series name: | S-Serie HMI |
| Manufacturer item number: | W10MG3S-PCH2LB-PoE |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 26,5 |
| dimensions height: | 17,3 |
| dimensions depth: | 3,8 |
| weight: | 1,2 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Kunststoff / plastic |
| protection front: | IP54 |
| colour: | schwarz / black |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,1 |
| aspect ratio: | 16:10 |
| resolution: | 1280 x 800 |
| brightness: | 350 cd/m² |
| contrast: | 800:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| USB: | 2 x USB 2.0, 1 x USB 2.0 OTG |
| serial: | 1 x RS-232 |
| Audio: | 1 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| CPU Typ: | ARM |
| CPU Model: | 2 x A78 + 4 x A55 |
| CPU speed: | 2,0 GHz |
| CPU cores: | 6 |
| RAM size (MB): | 4096 |
| RAM Typ: | LPDDR4 |
| SSD capacity (GB): | 32 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| Betriebssystem: | Android 13 |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
