CL2501
7 Slots (ATX Mainboard)
19-inch Industrial PC for professional use Industrial computer in sturdy steel sheet housing Aluminium front with lockable door Mainboard version (ATX) 7 x expansion slot (low profile) 2 x 80 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Made in Germany Long-term availability

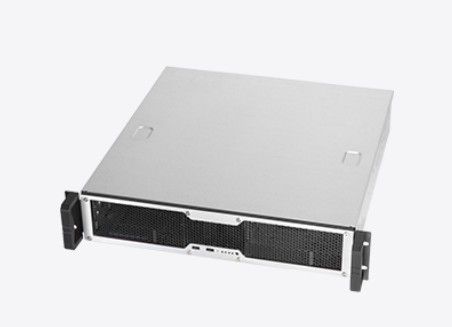

01-19-ZOLL-RACK-INDUSTRIE-PC-CL2501.JPG / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
02-19-Zoll-Rack-Industrie-PC-CL2501.jpg / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
Numero Ordine:
11200247
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 11200247 |
| Manufacturer: | TL |
| Manufacturer: | TL Electronic |
| series name: | ClassicLine |
| mechanics: | 19" Rack Mount |
| dimensions width: | 43,0 |
| dimensions height: | 8,81 |
| dimensions depth: | 45,72 |
| weight: | 12,0 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP20 |
| controls: | 2 Keys: Power, Reset |
| cooling: | aktiv / fan cooling |
| Bauhöhe: | 2HE |
| Mainboard form factor: | ATX |
| chipset: | Intel H610 |
| CPU Typ : | Core i5 |
| CPU Model : | 13500 |
| CPU 64bit : | Ja |
| CPU speed: | 2.50 GHz |
| CPU cores: | 14 |
| CPU socket: | FCLGA1700 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 65536 |
| RAM Number of benches: | 2 |
| RAM Typ : | DDR4 |
| PCI Express x16 : | 2 |
| PCI Express x1 : | 1 |
| PCI : | 4 |
| Grafik Controller: | Intel UHD Graphics 770 |
| Ethernet Controller: | Intel I219V + Intel I210AT |
| Audio Controller: | Realtek ALC897 |
| safety: | TPM 2.0 |
| connections SATA: | 4 |
| USB internal connections: | 1x USB 2.0 |
| Connections Serial internal: | 4x RS-232 |
| Digital I/O : | Ja / yes |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| USB : | 2 x USB 2.0 |
| Display : | 1x HDMI, 1x VGA, 1x DP |
| USB : | 4x USB 2.0, 4x USB 3.2(2x Gen1, 2x Gen2) |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Mic-In |
| serial: | 2 x RS-232/422/485 |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 60°C |
| warranty: | 24 Monate / 24 months |
